PRIMARY SHAFT COMPONENT DISASSEMBLY
id051500168700

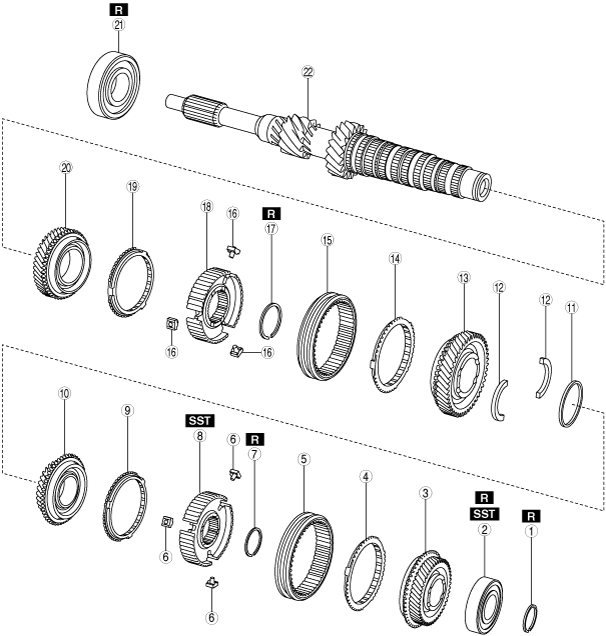

1. Disassemble the primary shaft component as shown in the figure.
bc62zm00000063
|
|
1
|
Clip
|
|
2
|
Ball bearing
|
|
3
|
4th gear
|
|
4
|
Synchronizer ring
|
|
5
|
Clutch hub sleeve
|
|
6
|
Synchronizer key
|
|
7
|
Clip
|
|
8
|
Clutch hub (3GR/4GR)
|
|
9
|
Synchronizer ring
|
|
10
|
3rd gear
|
|
11
|
Holder
|
|
12
|
Retaining ring
|
|
13
|
6th gear
|
|
14
|
Synchronizer ring
|
|
15
|
Clutch hub sleeve
|
|
16
|
Synchronizer key
|
|
17
|
Clip
|
|
18
|
Clutch hub (5GR/6GR)
|
|
19
|
Synchronizer ring
|
|
20
|
5th gear
|
|
21
|
Ball bearing
|
|
22
|
Primary shaft
|
Ball Bearing (Transaxle Case Side) Removal Note
1. Set the primary shaft component and SSTs in a press as shown in the figure.
bc62zm00000064
|
2. Disassemble the ball bearing using the press.

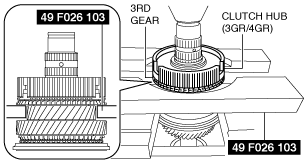

Clutch Hub (3GR/4GR) Removal Note
1. Set the primary shaft component and SST in a press as shown in the figure.
bc62zm00000065
|
2. Remove the clutch hub (3GR/4GR), synchronizer ring and 3rd gear as a single unit using the press.
Clutch Hub (5GR/6GR) Removal Note
1. Set the primary shaft component in a press as shown in the figure.
bc62zm00000066
|
2. Remove the clutch hub (5GR/6GR), synchronizer ring and 5th gear as a single unit using the press.
Ball Bearing (Clutch Housing Side) Removal Note
1. Set the primary shaft component in a press as shown in the figure.
bc62zm00000067
|
2. Remove the ball bearing using the press.
