DTC P025B:00 [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0102h4312600

DTC P025B:00

Fuel pump control module circuit range/performance problem

DETECTION CONDITION

•  When any of the following conditions is met:

―  The temperature in the fuel pump control module is too high.

―  Output duty ratio signal received from PCM is in error.

―  Output signal from fuel pump control module is erratic (noise overlap).

Diagnostic support note

•  This is a continuous monitor (CCM).

•  The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.

•  FREEZE FRAME DATA (Mode 2)/Snapshot data is available.

•  DTC is stored in the PCM memory.

FAIL-SAFE FUNCTION

•  Stops fuel pump control

POSSIBLE CAUSE

•  Fuel pump control module connector or terminals malfunction

•  PCM connector or terminals malfunction

•  Short to ground in wiring harness between fuel pump control module terminal 1B and PCM terminal 2AE

•  Short to power supply in wiring harness between fuel pump control module terminal 1B and PCM terminal 2AE

•  Open circuit in wiring harness between fuel pump control module terminal 1B and PCM terminal 2AE

•  Fuel pump control module malfunction

•  PCM malfunction

DTC P025B:00	Fuel pump control module circuit range/performance problem
DETECTION CONDITION	• When any of the following conditions is met: ― The temperature in the fuel pump control module is too high. ― Output duty ratio signal received from PCM is in error. ― Output signal from fuel pump control module is erratic (noise overlap). Diagnostic support note • This is a continuous monitor (CCM). • The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. • FREEZE FRAME DATA (Mode 2)/Snapshot data is available. • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	• Stops fuel pump control
POSSIBLE CAUSE	• Fuel pump control module connector or terminals malfunction • PCM connector or terminals malfunction • Short to ground in wiring harness between fuel pump control module terminal 1B and PCM terminal 2AE • Short to power supply in wiring harness between fuel pump control module terminal 1B and PCM terminal 2AE • Open circuit in wiring harness between fuel pump control module terminal 1B and PCM terminal 2AE • Fuel pump control module malfunction • PCM malfunction

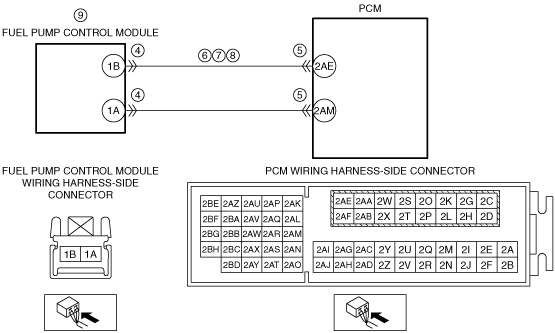

Diagnostic Procedure

STEP	INSPECTION		ACTION
1	VERIFY FREEZE FRAME DATA (MODE 2)/SNAPSHOT DATA HAS BEEN RECORDED • Has the FREEZE FRAME DATA (Mode 2)/snapshot data been recorded?	Yes	Go to the next step.
1		No	Record the FREEZE FRAME DATA (Mode 2)/snapshot data on the repair order, then go to the next step.
2	VERIFY RELATED SERVICE INFORMATION AVAILABILITY • Verify related Service Information availability. • Is any related Service Information available?	Yes	Perform repair or diagnosis according to the available Service Information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	VERIFY ENGINE CONDITION • Verify the engine condition. • Is the engine overheating?	Yes	Perform the symptom troubleshooting “NO.17 COOLING SYSTEM CONCERNS-OVERHEATING”. (See NO.17 COOLING SYSTEM CONCERNS-OVERHEATING [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
3		No	Go to the next step.
4	INSPECT FUEL PUMP CONTROL MODULE CONNECTOR CONDITION • Switch the ignition off. • Disconnect the fuel pump control module connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the connector and/or terminals, then go to Step 10.
4		No	Go to the next step.
5	INSPECT PCM CONNECTOR CONDITION • Disconnect the PCM connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the connector and/or terminals, then go to Step 10.
5		No	Go to the next step.
6	INSPECT FUEL PUMP CONTROL MODULE SIGNAL CIRCUIT FOR SHORT TO GROUND • Verify that the fuel pump control module and PCM connectors are disconnected. • Inspect for continuity between fuel pump control module terminal 1B (wiring harness-side) and body ground. • Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to Step 10.
6		No	Go to the next step.
7	INSPECT FUEL PUMP CONTROL MODULE SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY • Verify that the fuel pump control module and PCM connectors are disconnected. • Switch the ignition ON (engine off). Note • Another DTC may be stored by the PCM detecting an open circuit. • Measure the voltage at the fuel pump control module terminal 1B (wiring harness-side). • Is the voltage 0 V?	Yes	Go to the next step.
7		No	Repair or replace the wiring harness for a possible short to power supply, then go to Step 10.
8	INSPECT FUEL PUMP CONTROL MODULE SIGNAL CIRCUIT FOR OPEN CIRCUIT • Verify that the fuel pump control module and PCM connectors are disconnected. • Switch the ignition off. • Inspect for continuity between fuel pump control module terminal 1B (wiring harness-side) and PCM terminal 2AE (wiring harness-side). • Is there continuity?	Yes	Go to the next step.
8		No	Repair or replace the wiring harness for a possible open circuit, then go to Step 10.
9	INSPECT FUEL PUMP CONTROL MODULE • Reconnect all disconnected connectors. • Inspect the fuel pump control module. (See FUEL PUMP CONTROL MODULE INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) • Is there any malfunction?	Yes	Replace the fuel pump control module, then go to the next step. (See FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
9		No	Go to the next step.
10	VERIFY DTC TROUBLESHOOTING COMPLETED • Always reconnect all disconnected connectors. • Clear the DTC from the PCM memory using the M-MDS. (See AFTER REPAIR PROCEDURE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) • Perform the KOEO or KOER self test. (See KOEO/KOER SELF TEST [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) • Is the same DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the PCM. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) Go to the next step.
10		No	Go to the next step.
11	VERIFY AFTER REPAIR PROCEDURE • Perform the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
11		No	DTC troubleshooting completed.
