DTC P0482:00 [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0102h4850100

DTC P0482:00

Cooling fan relay No.2 and No.3 control circuit malfunction
DETECTION CONDITION
•  The cooling fan relay No.2 and No.3 control voltage is less than the specification or cooling fan relay No.2 and No.3 control current is the specification or more for a continuous 5 s relative to the PCM control signal.
Diagnostic support note
•  This is a continuous monitor (other).
•  The check engine light does not illuminate.
•  FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
•  DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION
Not applicable

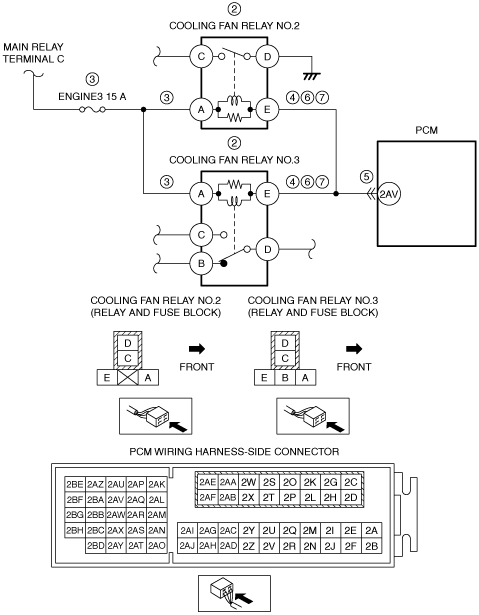

POSSIBLE CAUSE
•  Cooling fan relay No.2 and/or No.3 malfunction
•  Short to ground or open circuit in cooling fan relay No.2 and/or No.3 power supply circuit
―  Short to ground in wiring harness between the following terminals:
•  ENGINE3 15 A fuse—Cooling fan relay No.2 terminal A
•  ENGINE3 15 A fuse—Cooling fan relay No.3 terminal A
―  ENGINE3 15 A fuse malfunction
―  Open circuit in wiring harness between the following terminals:
•  Main relay terminal C—Cooling fan relay No.2 terminal A
•  Main relay terminal C—Cooling fan relay No.3 terminal A
•  Short to ground in wiring harness between the following terminals:
―  Cooling fan relay No.2 terminal E—PCM terminal 2AV
―  Cooling fan relay No.3 terminal E—PCM terminal 2AV
•  PCM connector or terminals malfunction
•  Short to power supply in wiring harness between the following terminals:
―  Cooling fan relay No.2 terminal E—PCM terminal 2AV
―  Cooling fan relay No.3 terminal E—PCM terminal 2AV
•  Open circuit in wiring harness between the following terminals:
―  Cooling fan relay No.2 terminal E—PCM terminal 2AV
―  Cooling fan relay No.3 terminal E—PCM terminal 2AV
•  PCM malfunction

Diagnostic Procedure

STEP

INSPECTION

ACTION
1
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
2
INSPECT COOLING FAN RELAY NO.2 AND NO.3
•  Switch the ignition off.
•  Remove the cooling fan relay No.2 and No.3.
•  Inspect the cooling fan relay No.2 and No.3.
•  Is there any malfunction?
Yes
Replace the cooling fan relay No.2 and/or No.3, then go to Step 8.
No
Go to the next step.
3
INSPECT COOLING FAN RELAY NO.2 AND NO.3 POWER SUPPLY CIRCUIT FOR SHORT TO GROUND OR OPEN CIRCUIT
•  Cooling fan relay No.2 and No.3 are removed.
•  Switch the ignition ON (engine off).
•  Measure the voltage at the following terminals (wiring harness-side):
―  Cooling fan relay No.2 terminal A
―  Cooling fan relay No.3 terminal A
•  Is the voltage B+?
Yes
Go to the next step.
No
Inspect the ENGINE3 15 A fuse.
•  If the fuse is blown:
―  Repair or replace the wiring harness for a possible short to ground.
―  Replace the fuse.
•  If the fuse is deteriorated:
―  Replace the fuse.
•  If the fuse is normal:
―  Repair or replace the wiring harness for a possible open circuit.
Go to Step 8.
4
INSPECT COOLING FAN RELAY NO.2 AND NO.3 SIGNAL CIRCUIT FOR SHORT TO GROUND
•  Cooling fan relay No.2 and No.3 are removed.
•  Switch the ignition off.
•  Inspect for continuity between the following terminals (wiring harness-side) and body ground:
―  Cooling fan relay No.2 terminal E
―  Cooling fan relay No.3 terminal E
•  Is there continuity?
Yes
Disconnect the PCM connector and inspect the wiring harness for short to ground.
•  If the short to ground circuit could be detected in the wiring harness:
―  Repair or replace the wiring harness which has a short to ground.
•  If the short to ground circuit could not be detected in the wiring harness:
―  Replace the PCM (short to ground in the PCM internal circuit).
Go to Step 8.
No
Go to the next step.
5
INSPECT PCM CONNECTOR CONDITION
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector and/or terminals, then go to Step 8.
No
Go to the next step.
6
INSPECT COOLING FAN RELAY NO.2 AND NO.3 SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
•  Cooling fan relay No.2 and No.3 are removed.
•  Verify that the PCM connector is disconnected.
•  Switch the ignition ON (engine off).
•  Measure the voltage at the following terminals (wiring harness-side):
―  Cooling fan relay No.2 terminal E
―  Cooling fan relay No.3 terminal E
•  Is the voltage 0 V?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible short to power supply, then go to Step 8.
7
INSPECT COOLING FAN RELAY NO.2 AND NO.3 SIGNAL CIRCUIT FOR OPEN CIRCUIT
•  Cooling fan relay No.2 and No.3 are removed.
•  Verify that the PCM connector is disconnected.
•  Switch the ignition off.
•  Inspect for continuity between the following terminals (wiring harness-side):
―  Cooling fan relay No.2 terminal E—PCM terminal 2AV
―  Cooling fan relay No.3 terminal E—PCM terminal 2AV
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
8
VERIFY DTC TROUBLESHOOTING COMPLETED
•  Always reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Perform the KOEO or KOER self test.
•  Is the same DTC present?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the PCM.
Go to the next step.
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
No
DTC troubleshooting completed.
