OIL STRAINER [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0111h5002400


Purpose, Function

•  The oil strainer suctions the engine oil in the oil pan using the oil pump vacuum. The engine oil is filtered by the internal filter at that time.

Construction

•  The oil strainer is installed on the suction port of the oil pump.

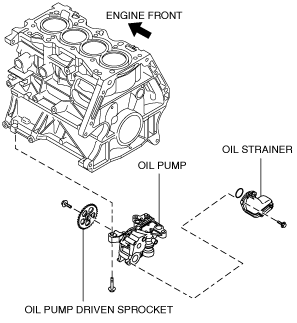

SKYACTIV-G 2.0

am3uun00001895

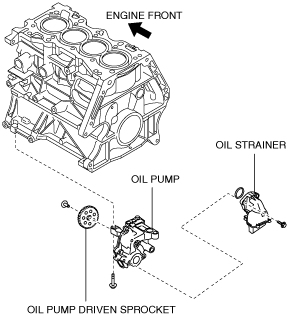

SKYACTIV-G 2.5

am6zzn00002422
•  The oil strainer has a filter in the inside.

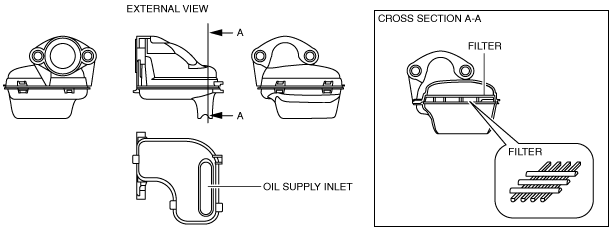

SKYACTIV-G 2.0

ac5wzn00001009

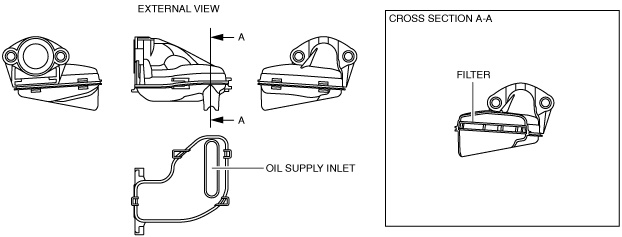

SKYACTIV-G 2.5

ac5wzn00003508
