COOLING FAN COMPONENT [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0112h6003200


Purpose, Function

•  The cooling fan rotates according to vehicle conditions and enhances the cooling efficiency of the radiator.

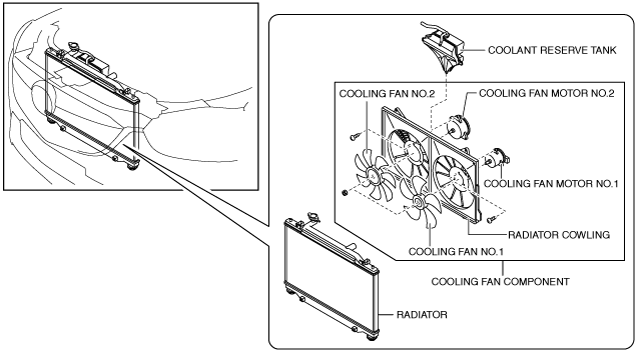

Structural View

ac5wzn00002171

Operation

•  For electrical fan control details, refer to CONTROL SYSTEM. (See ELECTRICAL FAN CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

Fail-safe

•  Function not equipped.
