WASTEGATE SOLENOID VALVE [SKYACTIV-D 2.2]
id0113z7256000
Purpose, Function
• The vacuum generated by the vacuum pump operation is introduced to the wastegate valve actuator.
• The wastegate valve opens according to the control signal from the PCM.
Construction

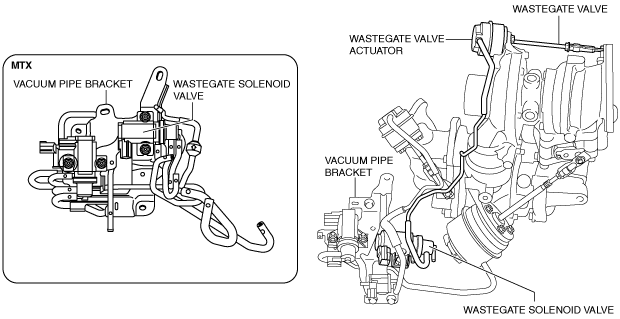

• The wastegate solenoid valve is installed to the vacuum pipe bracket on the side of the turbocharger.
• The wastegate solenoid valve consists of a coil, spring, and plunger.
Operation

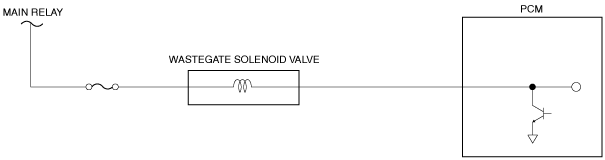

• According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the wastegate solenoid valve.
• Vacuum generated by the vacuum pump operation is introduced to the wastegate valve actuator by the opening of the wastegate solenoid valve.
Fail-safe
|
DTC
|
Fail-safe
|
|
P0047:00
|
• PCM restricts engine-transaxle integration control. (ATX)
• Inhibits engine-stop by operating the i-stop function. (Vehicle with i-stop)
|
|
P0048:00
|
