COMPRESSOR BYPASS SOLENOID VALVE [SKYACTIV-D 2.2]
id0113z7265200
Purpose, Function
• Vacuum generated by the vacuum pump operation is introduced to the compressor bypass valve actuator.
• The compressor bypass valve opens according to the control signal from the PCM.
Construction

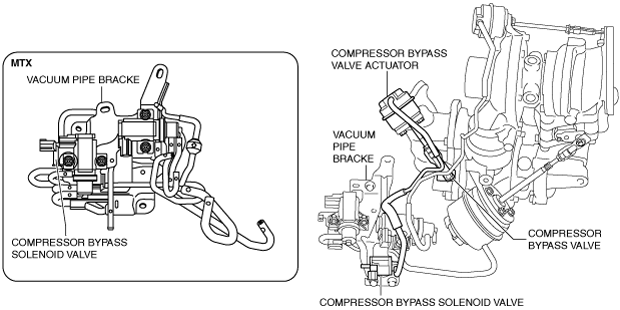

• The compressor bypass solenoid valve is installed to the vacuum pipe bracket on the side of the turbocharger.

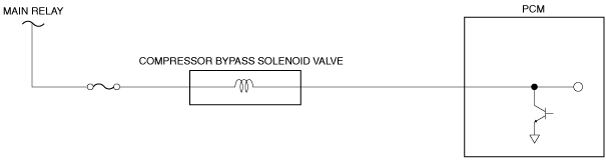

• The compressor bypass solenoid valve consists of a coil, spring, and plunger.
Operation
• According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the compressor bypass solenoid valve.
• Vacuum generated by the vacuum pump operation is introduced to the compressor bypass valve actuator by the opening of the compressor bypass solenoid valve.
Fail-safe
|
DTC
|
Fail-safe
|
|
P0034:00
|
• Stops compressor bypass solenoid valve
• Stops regulating solenoid valve
• Stops wastegate solenoid valve
|
|
P0035:00
|
