GLOW CONTROL MODULE [SKYACTIV-D 2.2]
id0113z7706100
Purpose, Function
• Controls the voltage applied to the glow plugs for improved startability during cold temperatures.
• Controls the voltage applied to the glow plugs based on the control signal from the PCM.
Construction
• The glow control module is installed below the battery.
Operation

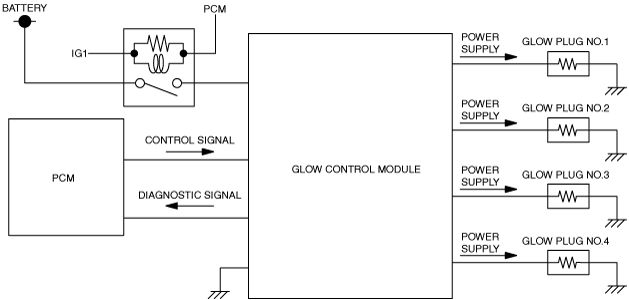

• Controls the voltage applied to the glow plugs based on the control signal from the PCM. In addition, the on-board diagnostic function is equipped and if there is a malfunction in the glow control module, a diagnostic signal is sent to the PCM. The PCM stores a DTC if necessary according to the received diagnostic signal.
Fail-safe
|
DTC
|
Fail-safe
|
|
P0383:00
|
• Inhibits engine-stop by operating the i-stop function. (Vehicle with i-stop)
|
|
P0384:00
|
|
P0670:00
|
|
P0683:00
|
|
P0684:00
|
