SUCTION CONTROL VALVE [SKYACTIV-D 2.2]
id0114z7707500
Purpose, Function
• By controlling the supply pump intake amount, the suction control valve controls the pressure pump feed amount and the pressure inside the fuel distribution pipe.
Construction

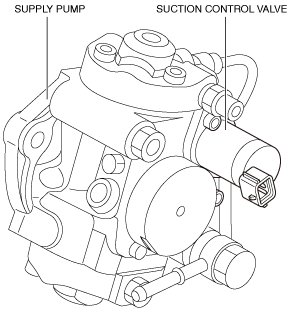

• The suction control valve is built into the supply pump.

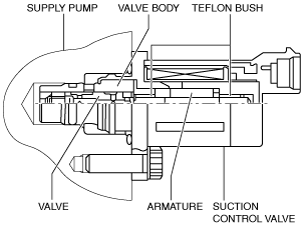

• The suction control valve consists of the valve, valve body, armature, and teflon bush.
Operation
• The intake amount is determined by the total opening size of the valve as controlled by the duty value of the solenoid actuation current.
• The duty solenoid can adjust the open and close time ratio to control the intake amount by changing the ON time during a single cycle. For a normally open type suction control valve, making the duty ratio smaller increases the intake amount and, conversely, making the duty value larger decreases the intake amount.
De-energized (open)
-

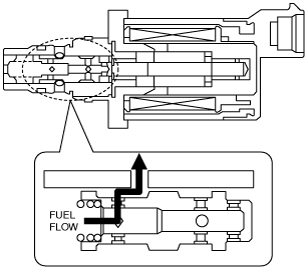

• The solenoid inner port is opened and fuel is sent into the control chamber.
Energized (closed)
-

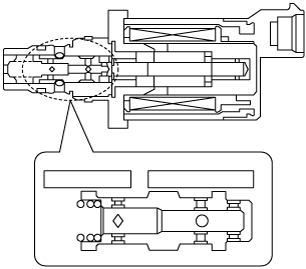

• The solenoid inner port is closed. Fuel siphoned by the feed pump is returned to the fuel tank through the regulator valve.
Fail-safe
|
DTC
|
Fail-safe
|
|
P062A:00
|
• Limits the engine torque or the upper limit of the engine speed.
• Inhibits the auto DPF regeneration control.
• Inhibits the compulsory DPF regeneration control.
• Inhibits the EGR control.
• PCM restricts engine-transaxle integration control. (ATX)
• Inhibits engine-stop by operating the i-stop function.
|
