MAIN SILENCER [SKYACTIV-D 2.2]

id0115z7101000

Purpose, Function

• Reduces the exhaust noise.

Construction

• The main silencer is installed to the vehicle rear, under the trunk compartment.

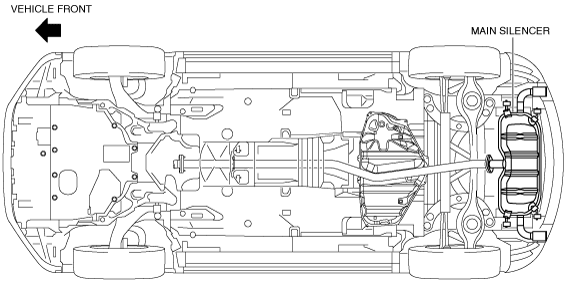

2WD

ac5wzn00000155

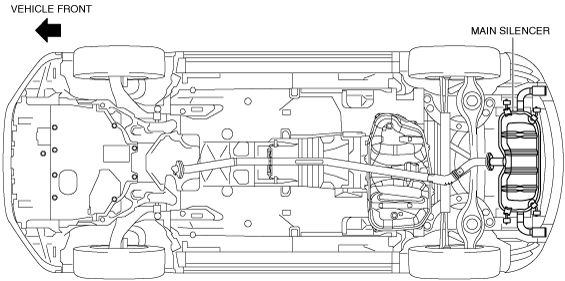

4WD

ac5wzn00000156

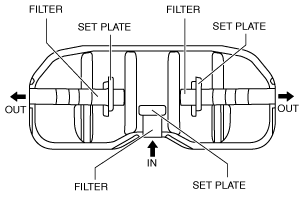

• The main silencer consists of the filters and stuffing filters.

am6zzn00004119
