MAIN SILENCER [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0115z9101000

Purpose, Function

• Reduces the exhaust noise.

Construction

• The main silencer is installed to the vehicle rear, under the trunk compartment.

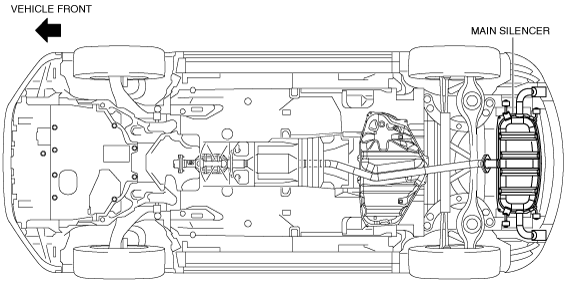

2WD

ac5wzn00000334

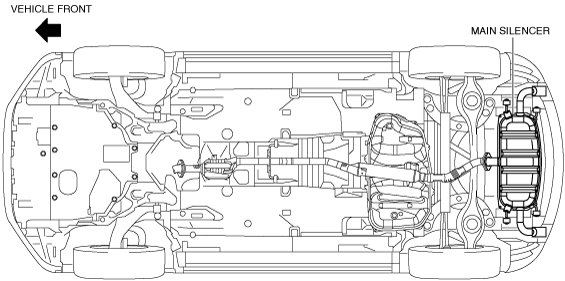

4WD

ac5wzn00000335

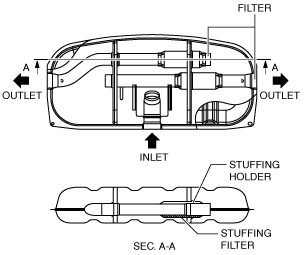

• The main silencer consists of the filters, holder, set plates and stiffener.

ac5uun00000064
