• Prevents fuel from flowing into the evaporative gas passage during sudden cornering or vehicle rollover.
Construction

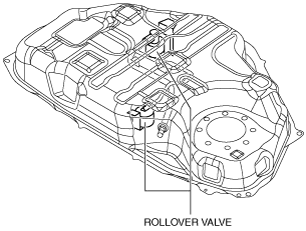

• The rollover valve is built into the fuel tank.
2WD
ac5wzn00000208
4WD
ac5wzn00000209
• The rollover valve consists of a float, O-ring and spring.
am3uun00002165
Operation
• The rollover valve utilizes a combination of float weight, spring force, and buoyancy. When the float is immersed in the fuel, the float (valve) closes to block the sealing surface of the passage.
