CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0116zb096400

1. Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

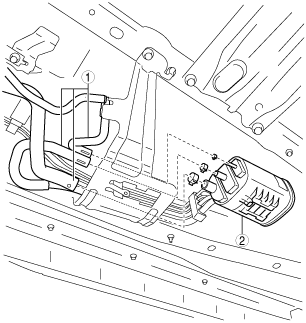

2. Remove in the order indicated in the table.

ac5wzw00001378

3. Install in the reverse order of removal.

Charcoal Canister Removal Note

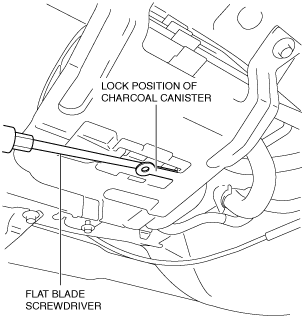

1. Release the lock as shown in the figure.

ac5wzw00001379

2. Remove the charcoal canister.

Evaporative Hose Installation Note

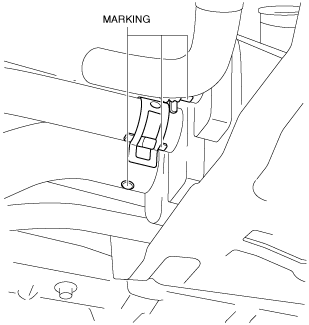

1. Connect the evaporative hose as shown in the figure.

ac5wzw00001380

1	Evaporative hose (See Evaporative Hose Installation Note.)
2	Charcoal canister (See Charcoal Canister Removal Note.)
