CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0116zb189700

1.  Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

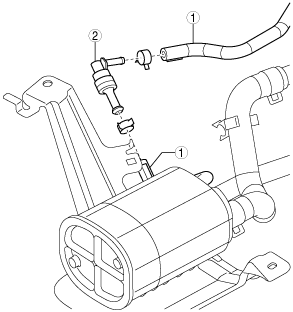

ac5wzw00001381

1	Evaporative hose
2	Check valve

3.  Install in the reverse order of removal.
