STARTER DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0119i2104500

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

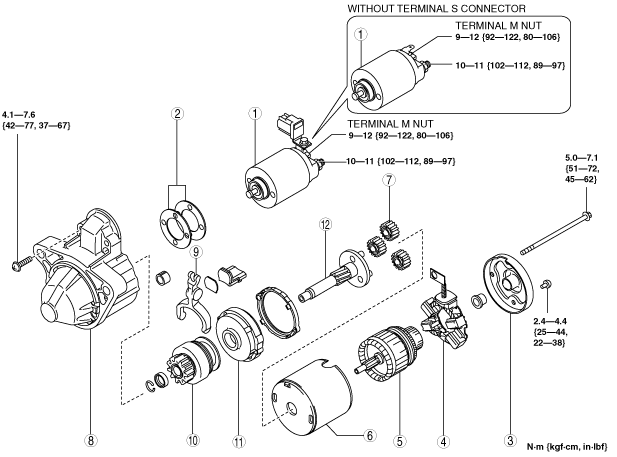

ac5wzw00006818

1	Magnetic switch
2	Adjustment washer
3	Rear housing
4	Brush and brush holder
5	Armature
6	Yoke
7	Planetary gear
8	Front cover
9	Lever
10	Drive pinion
11	Internal gear
