WRENCH INDICATOR LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0140g2265500

Purpose, Function

• The wrench indicator light alerts the driver to an engine oil deterioration and engine oil level malfunction.

Construction

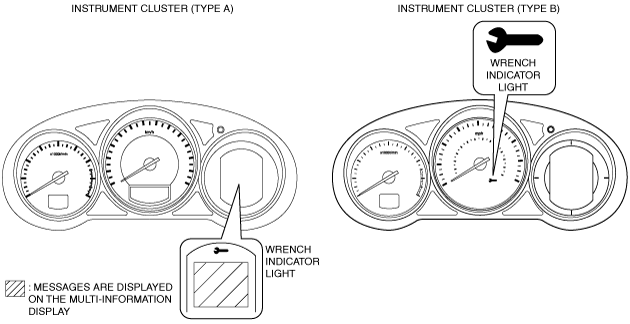

• The wrench indicator light is built into the instrument cluster.

ac5wzn00003443

• When a wrench warning light lights up, a warning message is displayed on a center display or a multi information display. Please refer to a [CENTER DISPLAY] or a [MULTI INFORMATION DISPLAY] for the contents and the check method of a message. (See CENTER DISPLAY [WITH CENTER DISPLAY].) (See MULTI-INFORMATION DISPLAY.)

Operation

• The wrench warning indicator light illumination conditions are as follows:

Wrench warning indicator light illumination conditions

― When the preset maintenance period approaches (See MAINTENANCE MONITOR [WITH CENTER DISPLAY].)

― PCM determines engine oil replacement period reached. (See ENGINE OIL MAINTENANCE MONITOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (European specs.)

Fail-safe

• Not applicable
