AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0140g2899700

Warning

•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

Caution

•  Do not allow flammable objects such as the taping for bundling a wiring harness to come into contact with the exhaust manifold and silencer.

ac5wzw00006689

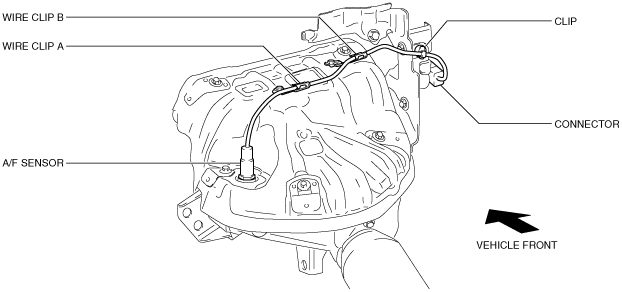

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

3.  Disconnect the A/F sensor connector.

4.  Remove the clip from the heat insulator.

ac5wzw00006690

5.  Remove the wiring harness from the wire clips A and B. (See Assembly of Wiring Harness to Wire Clip Note.)

ac5wzw00006691

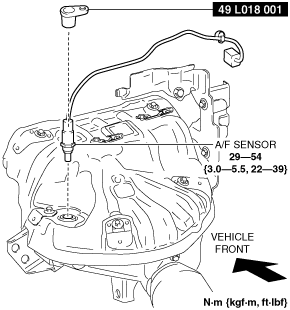

6.  Remove the A/F sensor using the SST.

ac5wzw00006692

7.  Install in the reverse order of removal.

Assembly of Wiring Harness to Wire Clip Note

•  Secure the heat shrinkable tube on the wiring harness to wire clip A.

ac5wzw00007817

•  Secure the wiring harness to wire clip B so that the band on the wiring harness is positioned to the position shown in the figure.

ac5ccw00000072
