ENGINE COOLANT TEMPERATURE (ECT) SENSOR [SKYACTIV-D 2.2]

id0140z7006200

Purpose/Function

• Detects the ECT as basic information for mainly determining the fuel injection amount.

• Detects the ECT and sends it to the PCM as an ECT signal.

Construction

• Installed on the cylinder head.

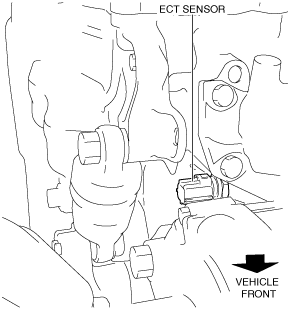

ac5wzn00001607

• A thermistor has been adopted as the detecting element for detecting the ECT.

Operation

• Sends the signal, which fluctuates according to the ECT, to the PCM.

ac5wzn00001608

ECT sensor characteristic

ac5wzn00001609

Fail-safe

DTC No.

Fail-safe function

P0116:00

P0117:00

P0118:00

•  PCM restricts engine torque.

•  Inhibits the auto DPF regeneration control.

•  Inhibits the compulsory DPF regeneration control.

•  Inhibits the EGR control.

•  PCM restricts engine-transaxle integration control. (ATX)

•  Increase the idle speed.

•  Inhibits the A/C control.

•  Inhibits engine-stop by operating the i-stop function.
