MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0140z7804300

MAP Sensor No.1 Removal/Installation

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Cowl panel (See COWL PANEL REMOVAL/INSTALLATION.)

(2)  Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

(3)  Battery and battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

(4)  Air pipe and air hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Disconnect the connector for the MAP sensor No.1 using the following procedure:

Caution

•  Do not apply excessive force when using the flathead screwdriver so as to prevent damage to the connector tab.

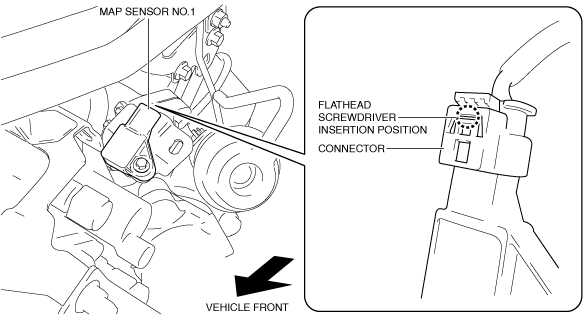

(1)  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac5wzw00006422

(2)  Pull out the connector lock in the direction of the arrow.

ac5wzw00006423

(3)  Disconnect the connector. (See MAP sensor No.1 connector connection note.)

4.  Remove the clip from the bracket.

ac5wzw00007830

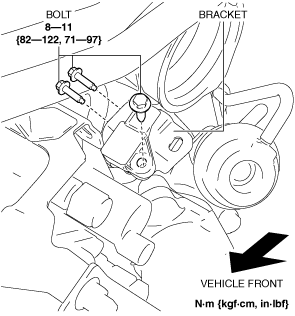

5.  Remove the bolts from the bracket.

ac5wzw00005487

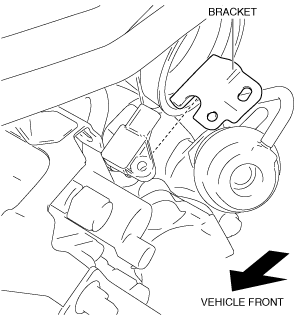

6.  Remove the bracket.

ac5wzw00005488

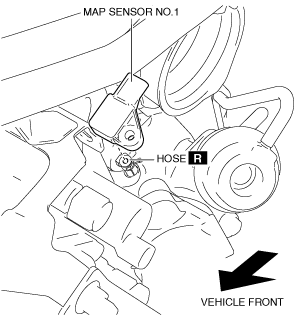

7.  Remove the MAP sensor No.1. (See MAP sensor No.1 installation note.)

ac5wzw00005489

8.  Install in the reverse order of removal.

MAP sensor No.1 installation note

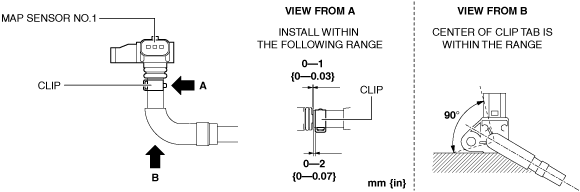

1.  Install the MAP sensor No.1 shown in the figure.

ac5wzw00007831

MAP sensor No.1 connector connection note

1.  Connect the connector for the MAP sensor No.1 and press it in the lock direction of the arrow.

ac5wzw00005490

MAP Sensor No.2 Removal/Installation

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

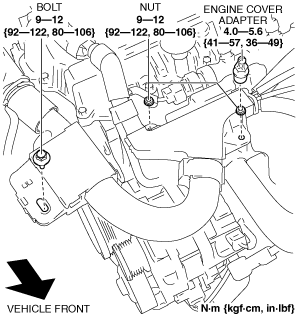

3.  Remove the bolt, nuts and engine cover adapter.

ac5wzw00007832

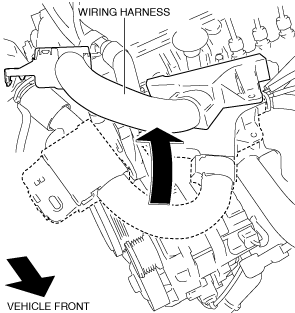

4.  Set the wiring harness aside. (See Protector installation note.)

ac5wzw00004486

5.  Disconnect the MAP sensor No.2 connector.

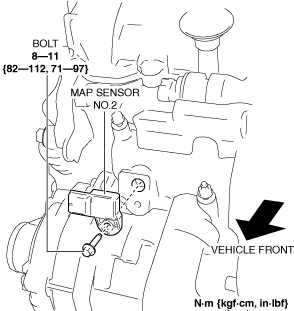

6.  Remove the MAP sensor No.2.

ac5wzw00007833

7.  Install in the reverse order of removal.

Protector installation note

1.  Install a protector shown in the figure.

ac5wzw00004488
