INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0140z7806300

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Disconnect the IAT sensor No.2 connector.

4.  Remove clip A from the bracket.

ac5wzw00004490

5.  Remove clip B from the bracket.

ac5wzw00005491

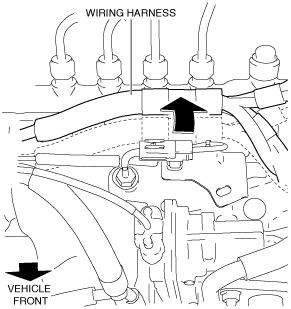

6.  Set the wiring harness aside.

ac5wzw00005492

7.  Remove clip C from the bracket.

ac5wzw00005493

8.  Remove the IAT sensor No.2.

ac5wzw00005494

9.  Install in the reverse order of removal.
