i-stop OFF SWITCH INSPECTION [SKYACTIV-D 2.2]

id0140z7888900

Note

•  The i-stop OFF switch is integrated with the cluster switch.

•  For the cluster switch removal/installation, refer to “SWITCH PANEL REMOVAL/INSTALLATION” because the cluster switch is installed to the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION.)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the cluster switch. (See SWITCH PANEL REMOVAL/INSTALLATION.)

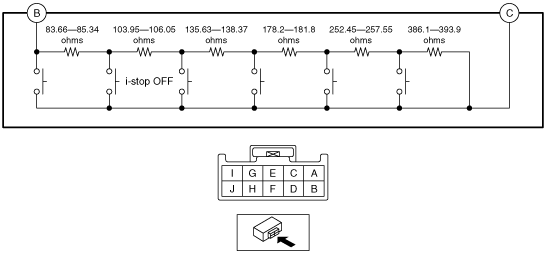

3.  Verify that the resistance between cluster switch terminals B and C is as indicated in the table.

ac5wzw00006433

ac5wzw00006434

•  If the resistance can be verified as indicated in the table, go to the next step.

•  If not as indicated in the table, replace the cluster switch. (See SWITCH PANEL REMOVAL/INSTALLATION.)

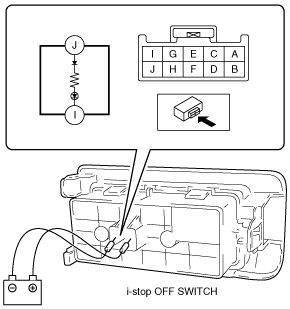

4.  Apply battery positive voltage to cluster switch terminal J, and connect terminal I to ground.

ac5wzw00006435

5.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the cluster switch. (See SWITCH PANEL REMOVAL/INSTALLATION.)
