DISC PAD (FRONT) REPLACEMENT

id041100800700

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

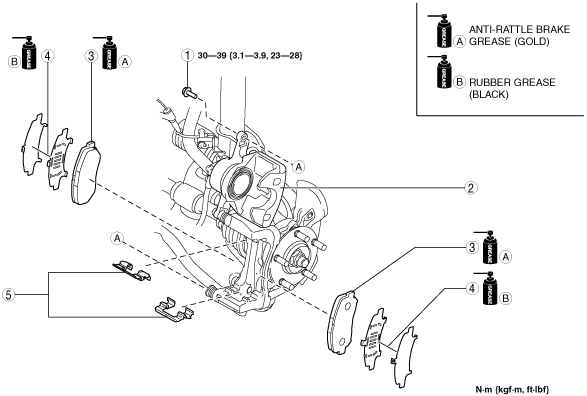

ac5wzw00008448

1	Bolt
2	Caliper
3	Disc pad (See Disc Pad Installation Note.)
4	Shim
5	Guide plate (See Guide Plate Installation Note.)

Guide Plate Installation Note

Caution

•  Abnormal noises may occur from the front brake if the guide plate is installed in an abnormal position. When installing the guide plate to the mounting support, install it correctly to the mounting support as shown in the figure.

1.  Install the guide plate as shown in the figure.

ac5uuw00004869

Disc Pad Installation Note

1.  Clean the exposed area of the piston.

2.  Push the piston in using the commercially available disc brake expand tool.

ac5wzw00002523

3.  Install the disc pads to the mounting support.
