TCS OFF SWITCH, TCS OFF INDICATOR LIGHT
id041500108700
Purpose/Function
• The TCS OFF switch, located on the dashboard, allows for optionally enabling/disabling the TCS control at driver discretion.

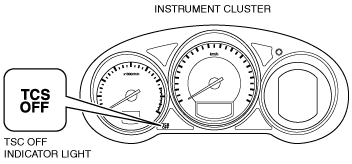

• The TCS OFF indicator light, built into the instrument cluster, informs the driver that TCS control has been disabled by operation of the TCS OFF switch.
Operation
• When the DSC system and CAN lines are functionally normally, the TCS OFF indicator light illuminates for approx. 3.0 s when the ignition is switched to ON to check the light function.
• When the TCS OFF switch is pressed to disable TCS control, the TCS OFF indicator light illuminates.
-
Note
-
• To inhibit the TCS control, continue to press the TCS OFF switch until the TCS OFF indicator light illuminates.
• The TCS OFF indicator light illumination and TCS/DSC/roll over mitigation (ROM) control conditions while operating the TCS OFF switch are as indicated in the table.
|
|
TCS OFF indicator light illumination conditions
|
TCS control conditions
|
DSC control conditions
|
Roll over mitigation (ROM) control conditions
|
|
Brake control
|
Engine control
|
|
TCS ON
|
Not illuminated
|
Permitted
|
Permitted
|
Permitted
|
Permitted
|
|
TCS OFF
|
Illuminated
|
Permitted
|
Inhibited
|
Permitted
|
Permitted
|
Fail-safe
|
DTC No.
|
Fail-safe function
|
|
C0089:64
|
• Permits the control and does not illuminate each warning/indicator light.
|
