TCS OFF SWITCH INSPECTION

id041500803100

1.  Remove the TCS OFF switch. (See TCS OFF SWITCH REMOVAL/INSTALLATION.)

2.  Verify that the resistance between the TCS OFF switch terminals B and C is as indicated in the table.

•  If not as indicated in the table, replace the TCS OFF switch.

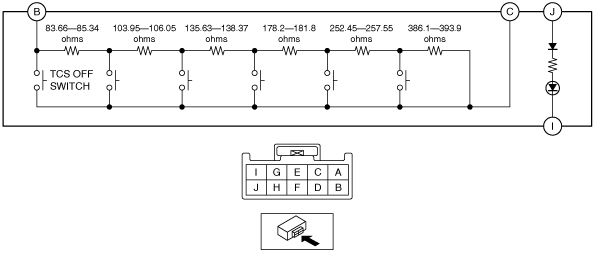

ac5wzw00000248

TCS OFF switch specification

Terminal

Test condition

Resistance (ohms)
B—C
Switch pressed
0
Switch released
1139.99—1163.01

3.  Apply battery voltage to TCS OFF switch terminal J, and connect terminal I to ground.

4.  Verify that the LED illuminates.

•  If there is any malfunction, replace the TCS OFF switch.
