ON-BOARD DIAGNOSTIC SYSTEM OUTLINE [GW6A-EL, GW6AX-EL]
id050230280000
Purpose/Function
• An on-board diagnostic system has been adopted to improve serviceability.
• On-board diagnostic system adopted consisting of the following functions:
-
― Malfunction detection function
― Fail-safe function
― Diagnostic data memory function
― Malfunction indication function
-
• Check engine light
• Automatic transaxle warning light
― External tester communication function
-
• DLC-2
• CAN
― PID/DATA monitor function
― Simulation function
Construction/Operation

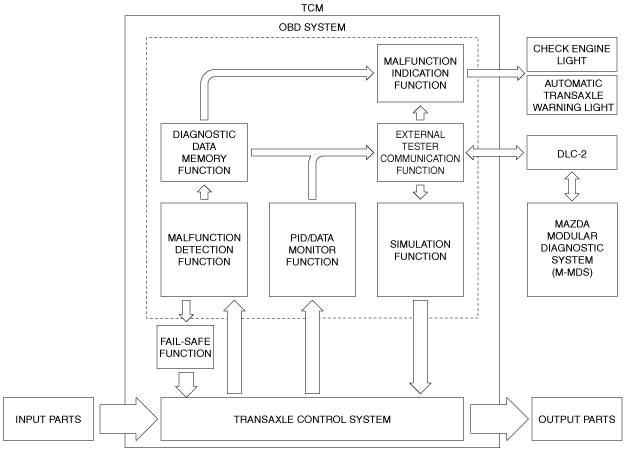

Block Diagram
