TIE-ROD END REPLACEMENT

id061300801200

1.  Remove the snap pin.

ac5wzw00001011

2.  Loosen the tie-rod end locknut.

3.  Detach the tie-rod end from the steering knuckle using the SST.

ac5wzw00001012

4.  Remove the tie-rod end locknut.

5.  Place alignment marks as shown in the figure for proper installation.

ac5wzw00001013

6.  Remove the tie-rod end.

ac5wzw00001014

7.  Align the alignment marks made before removing the tie-rod end, and then install a new tie-rod end to the tie rod.

ac5wzw00001015

•  If there are no alignment marks, go to the following procedure.

8.  Adjust dimension A shown in the figure to the standard, and assemble.

ac5wzw00002492

9.  Install the tie-rod end to the steering knuckle.

ac5wzw00001017

10.  Install a new snap pin.

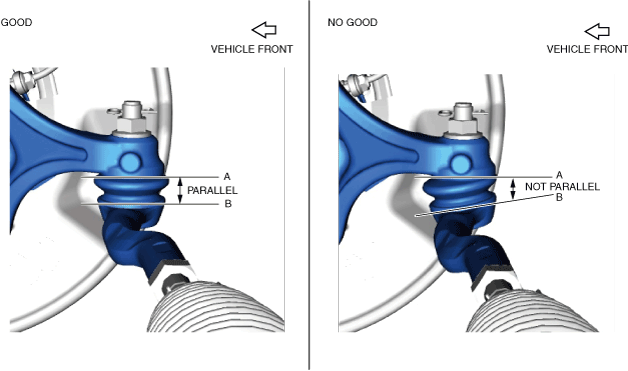

11.  Verify that A and B shown in the figure are parallel while the vehicle is on the ground.

ac5wzw00012790

Caution

•  Install the tie-rod end to the correct position. Otherwise, it could cause cracks on the tie-rod end boot.

•  If the installation position is not correct, perform the adjustment using the following procedure.

1.  Adjust the tie-rod end by rotating it so that it is at the correct position.

ac5wzw00012778

12.  After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)
