DTC U200D:11 [CLIMATE CONTROL UNIT (MANUAL AIR CONDITIONER)]

id0702k3736600

System malfunction location	•  Climate control unit circuit voltage (+5V) circuit short to ground

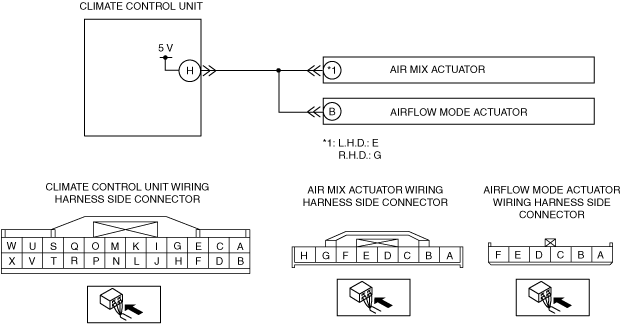

Detection condition	•  Malfunction in wiring harness between climate control unit circuit voltage (+5V) and each actuator
Fail-safe function	Not applicable
Possible cause	•  Connector or terminal malfunction •  Each actuator malfunction •  Short to ground in wiring harness between climate control unit and air mix actuator •  Short to ground in wiring harness between climate control unit and airflow mode actuator •  Climate control unit malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Disconnect the climate control unit connectors. •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Repair/replace the malfunctioning vehicle wiring harness, connector, or terminal. After repair procedure, go to the next step.
2	VERIFY CONNECTOR CONDITION •  Disconnect the following each actuator connectors. ―  Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) ―  Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Replace the malfunctioning part. After replace procedure, go to the next step.
3	INSPECT EACH ACTUATOR •  Inspect the following each actuator. ―  Air mix actuator (See AIR MIX ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].) ―  Airflow mode actuator (See AIRFLOW MODE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].) •  Is it normal?	Yes	Go to the next step.
		No	Replace the malfunctioning actuator. After replace procedure, go to the next step.
4	INSPECT EACH ACTUATOR CIRCUIT FOR SHORT TO GROUND •  Inspect for continuity between the following terminal (wiring harness-side) and body ground: ―  Climate control unit terminal H •   Is there continuity?	Yes	Repair the wiring harness. Go to the next step.
		No	Go to the next step.
5	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN •  Reconnect the disconnected connectors. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Clear the past malfunction from memory. •  Verify DTCs. •  Is DTC U200D:11 output?	Yes	Repeat the inspection from Step 1. •  If the malfunction does not recur, go to the next step. •  If the malfunction recurs, replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) Go to the next step.
		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCs ARE PRESENT •  Verify other DTCs displayed. •  Are any other DTCs output?	Yes	Perform the corresponding DTC inspection.
		No	DTC troubleshooting completed.
