FRONT HEAT DUCT REMOVAL/INSTALLATION

id071100307100

Driver-side

1.  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

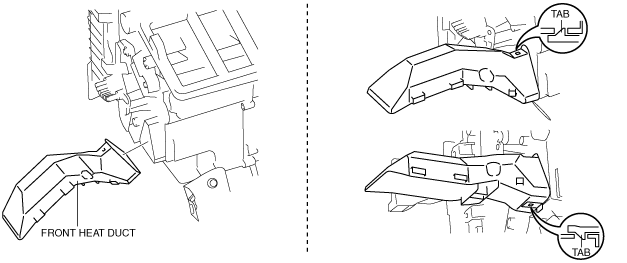

2.  Detach the tab and remove the front heat duct.

ac5wzw00007332

3.  Install in the reverse order of removal.

Passenger-side

1.  Remove the following parts:

(1)  Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

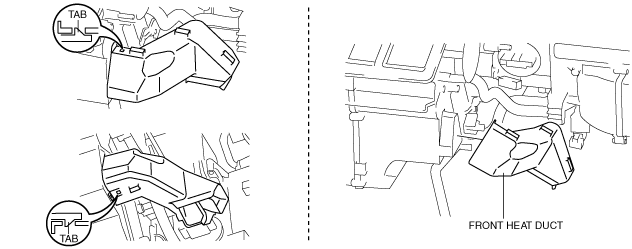

2.  Detach the tab and remove the front heat duct.

ac5wzw00007333

3.  Install in the reverse order of removal.
