BASIC SYSTEM
id071100310100
Outline
Structural View
Ventilation system

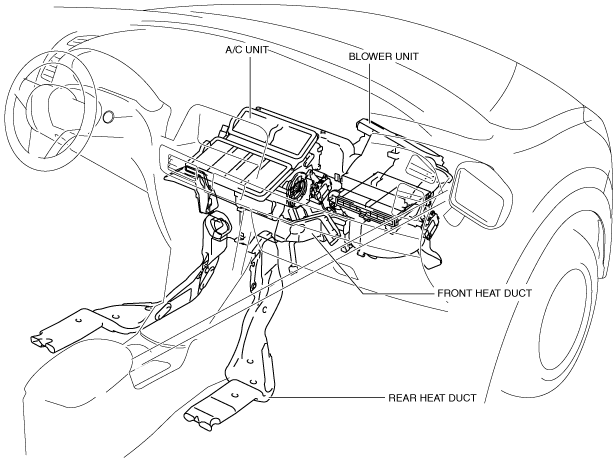

L.H.D.
ac5wzn00000656
|

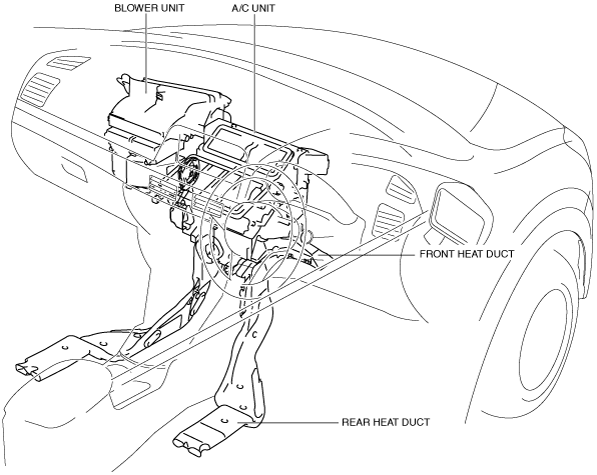

R.H.D.
ac5wzn00000657
|

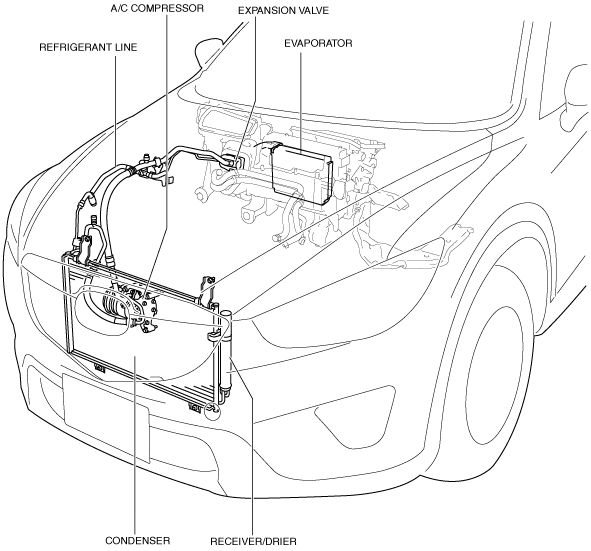

Refrigerant system
ac5wzn00002831
|

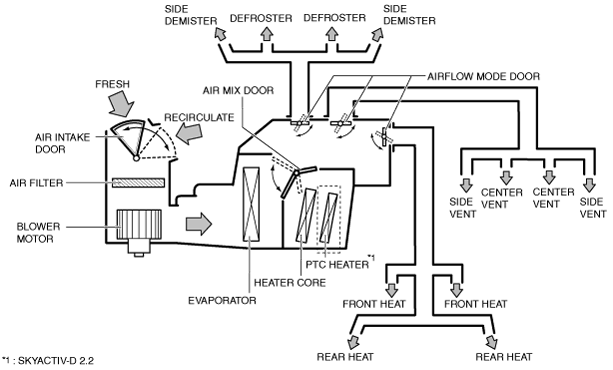

Flow Diagram
Ventilation system
A/C unit
ac5wzn00000659
|

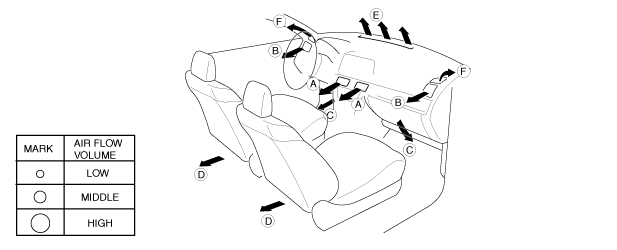

Inside the vehicle
ac5wzn00000660
|
|
Display |
CENTER VENT |
SIDE VENT |
FOOT VENT |
FRONT DEFROSTER |
SIDE DEFROSTER |
|
|---|---|---|---|---|---|---|
|
Front |
Rear |
|||||
|
A |
B |
C |
D |
E |
F |
|
 |
 |
|
—
|
—
|
—
|
—
|
 |
 |
|
|
 |
—
|
—
|
 |
—
|
|
|
|
|
|
 |
—
|
|
|
|
|
|
 |
—
|
|
—
|
—
|
|
|

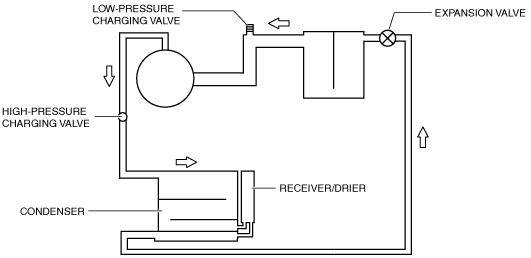

Refrigerant system
ac5wzn00001109
|
