A/C UNIT DISASSEMBLY/ASSEMBLY

id071100800300

L.H.D.

1. Disassemble in the order indicated in the table.

Caution

• If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

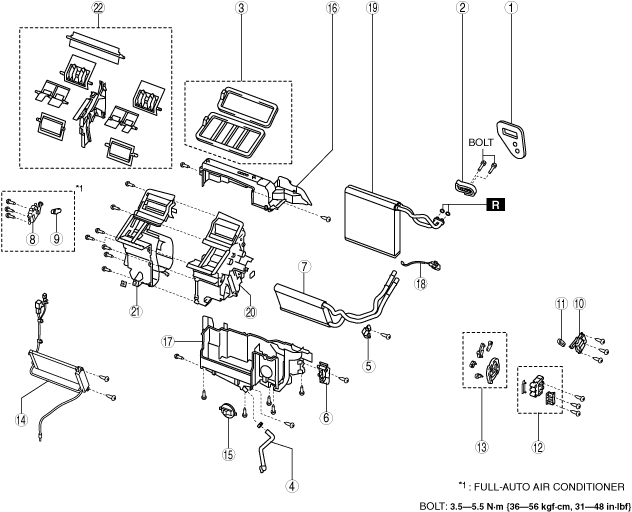

ac5wzw00007316

X: Applicable

-: Not applicable

Step	Part name	Disassembly/assembly of main parts
Step	Part name	Heater core	Evaporator temperature sensor	Evaporator
1	Polyurethane foam	X	X	X
2	Expansion valve	-	-	X
3	Adhesive polyurethane	-	-	-
4	Drain hose	-	-	-
5	Plate (1)	X	X	X
6	Plate (2)	X	X	X
7	Heater core	X	X	X
8	Driver-side air mix actuator (Full-auto air conditioner)	-	-	-
9	Driver-side air mix link (Full-auto air conditioner)	-	-	-
10	Passenger-side air mix actuator (Full-auto air conditioner)	-	-	-
10	Air mix actuator (Manual air conditioner)	-	-	-
11	Passenger-side air mix link (Full-auto air conditioner)	-	-	-
11	Air mix link (Manual air conditioner)	-	-	-
12	Airflow mode actuator	-	-	-
13	Airflow mode link set	-	-	-
14	PTC heater (with PTC heater)	-	-	-
15	Blower fan controller	-	-	-
16	A/C case (1)	-	X	X
17	A/C case (2)	-	X	X
18	Evaporator temperature sensor (See Evaporator temperature sensor assembly note.)	-	X	X
19	Evaporator	-	-	X
20	A/C case (3)	-	-	-
21	A/C case (4)	-	-	-
22	Door damper	-	-	-

2. Assemble in the reverse order of disassembly.

Evaporator temperature sensor assembly note

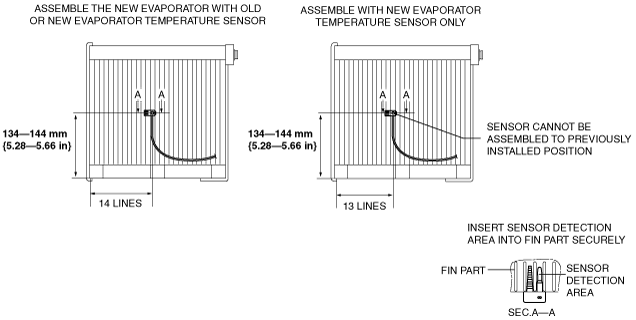

1. Assemble the evaporator temperature sensor as shown in the figure.

ac5wzw00007317

Caution

• When installing the evaporator temperature sensor without replacing the evaporator, assemble the evaporator temperature sensor with the installation position slid to the left of the previous position by 1 line. If the evaporator temperature sensor is assembled to the previously installed position, it may not function due to poor contact of the fin surface with the sensor detection area caused by fin deformation.

Note

• If an evaporator temperature sensor cannot be correctly positioned on the evaporator, replace the evaporator.

R.H.D.

1. Disassemble in the order indicated in the table.

Caution

• If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

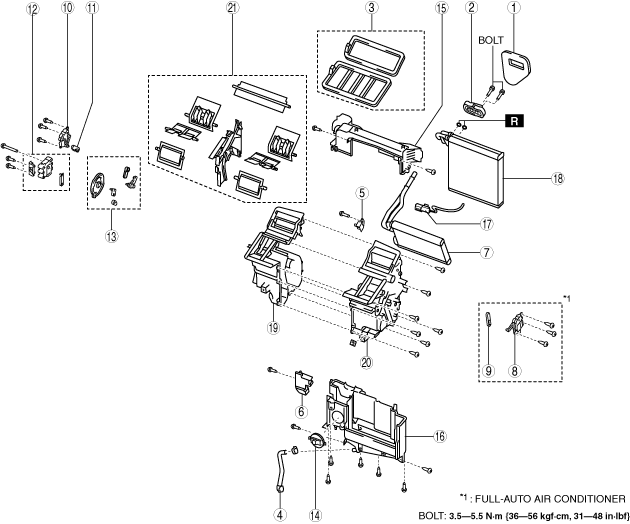

ac5wzw00007318

X: Applicable

-: Not applicable

Step	Part name	Disassembly/assembly of main parts
Step	Part name	Heater core	Evaporator temperature sensor	Evaporator
1	Polyurethane foam	X	X	X
2	Expansion valve	-	-	X
3	Adhesive polyurethane	-	-	-
4	Drain hose	-	-	-
5	Plate (1)	X	X	X
6	Plate (2)	X	X	X
7	Heater core	X	X	X
8	Driver-side air mix actuator (Full-auto air conditioner)	-	-	-
9	Driver-side air mix link (Full-auto air conditioner)	-	-	-
10	Passenger-side air mix actuator (Full-auto air conditioner)	-	-	-
10	Air mix actuator (Manual air conditioner)	-	-	-
11	Passenger-side air mix link (Full-auto air conditioner)	-	-	-
11	Air mix link (Manual air conditioner)	-	-	-
12	Airflow mode actuator	-	-	-
13	Airflow mode link set	-	-	-
14	Blower fan controller	-	-	-
15	A/C case (1)	-	X	X
16	A/C case (2)	-	X	X
17	Evaporator temperature sensor (See Evaporator temperature sensor assembly note.)	-	X	X
18	Evaporator	-	-	X
19	A/C case (3)	-	-	-
20	A/C case (4)	-	-	-
21	Door damper	-	-	-

2. Assemble in the reverse order of disassembly.

Evaporator temperature sensor assembly note

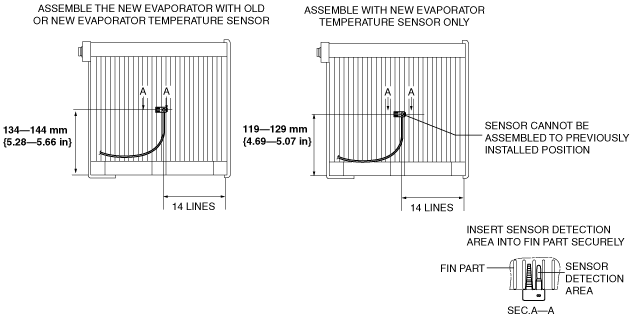

1. Assemble the evaporator temperature sensor as shown in the figure.

ac5wzw00007319

Caution

• When installing the evaporator temperature sensor without replacing the evaporator, assemble the evaporator temperature sensor with the installation position slid to the downward of the previous position. If the evaporator temperature sensor is assembled to the previously installed position, it may not function due to poor contact of the fin surface with the sensor detection area caused by fin deformation.

Note

• If an evaporator temperature sensor cannot be correctly positioned on the evaporator, replace the evaporator.
