CONTROL SYSTEM [FULL-AUTO AIR CONDITIONER]


id0740a1126500


Outline

•  Refrigerant pressure sensor adopted in which refrigerant pressure is changed into a linear electric signal and precise information is transmitted.
•  MS-CAN for communication between the instrument cluster and climate control unit adopted.
•  Climate control unit with enlarged operation dials and switches adopted.
•  A climate control unit with an integrated display panel has been adopted.
•  A PTC heater has been adopted to temporarily improve the A/C unit heating performance for diesel engine vehicles which have good thermal efficiency (with PTC heater).
•  The blower fan controller has been adopted.

Structural View

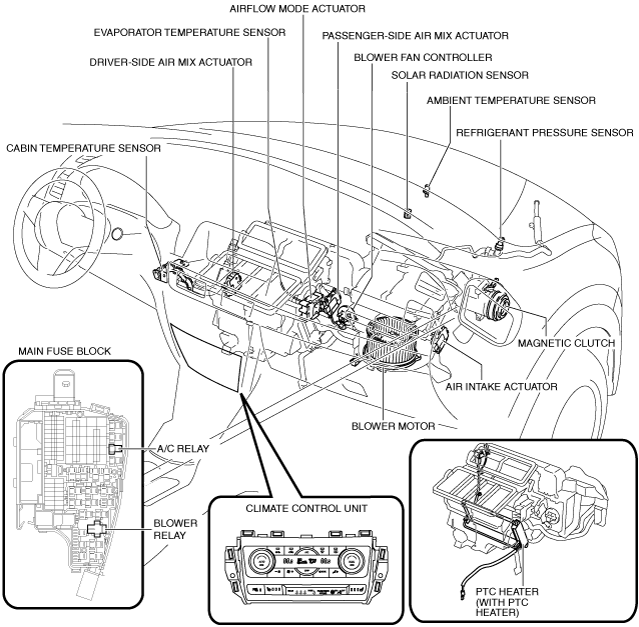

L.H.D.

ac5wzn00002840

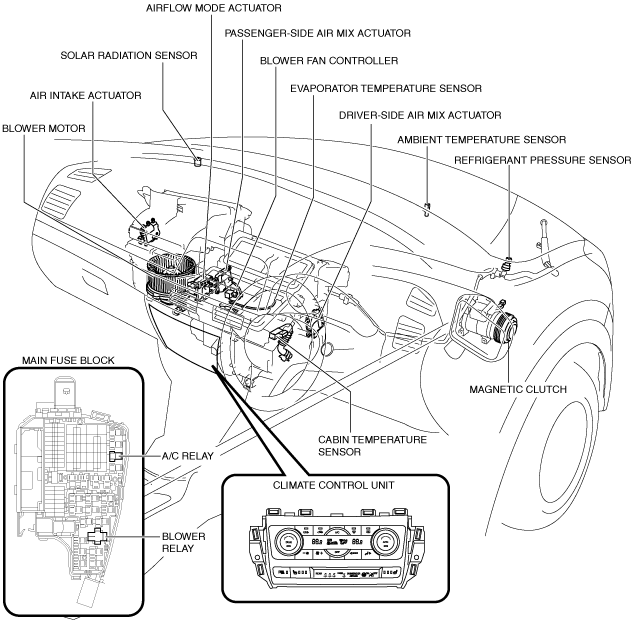

R.H.D.

ac5wzn00002841

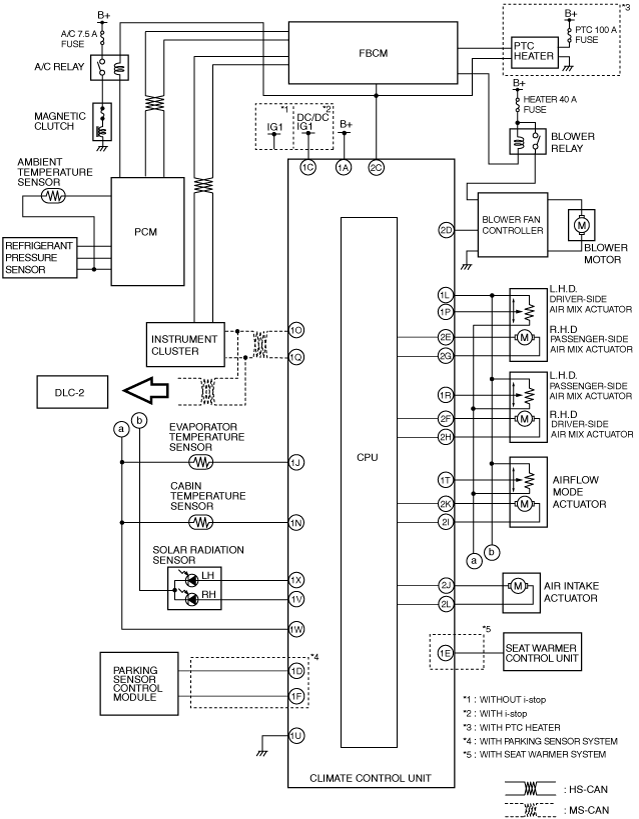

System Wiring Diagram

ac5wzn00002842
