CONTROL SYSTEM [MANUAL AIR CONDITIONER]


id0740a2126500


Outline

•  Refrigerant pressure sensor adopted in which refrigerant pressure is changed into a linear electric signal and precise information is transmitted.
•  A PTC heater has been adopted to temporarily improve the A/C unit heating performance for diesel engine vehicles which have good thermal efficiency (with PTC heater).
•  The climate control unit has been changed.
•  MS-CAN for communication between the instrument cluster and climate control unit adopted.
•  The blower fan controller has been adopted.
•  The airflow mode actuator has been adopted.
•  The air mix actuator has been adopted.

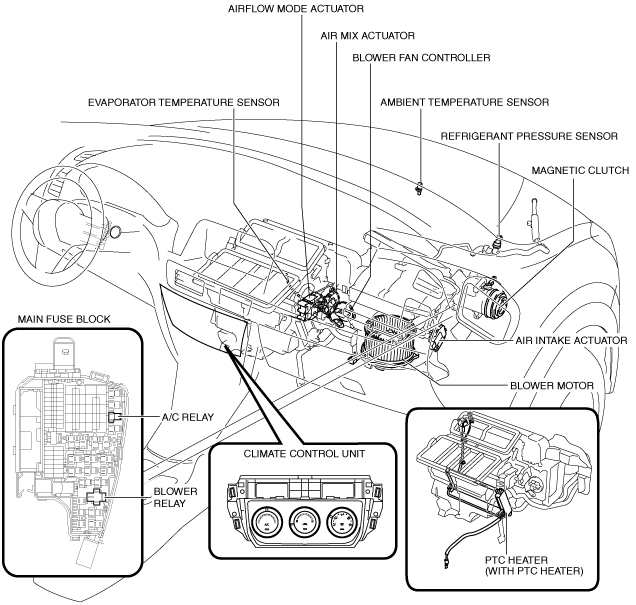

Structural View

L.H.D.

ac5wzn00002857

R.H.D.

ac5wzn00002858

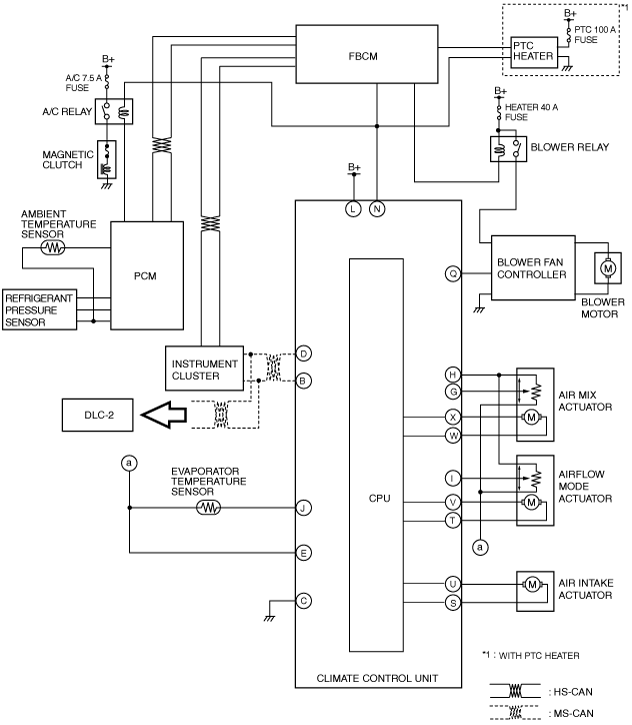

System Wiring Diagram

ac5wzn00002859
