BLOWER FAN CONTROLLER INSPECTION [MANUAL AIR CONDITIONER]


id0740a2820100

1.  Switch the ignition ON (engine off or on).

2.  Connect the negative (-) lead of the tester to body ground.

3.  Insert the positive (+) lead of the tester into each blower fan controller terminal.

4.  Measure the voltage according to the terminal voltage table.

•  If there is any malfunction, inspect the parts under “Inspection item (s)”.
―  If the parts under “Inspection item (s)” are found to be normal, replace the blower fan controller.

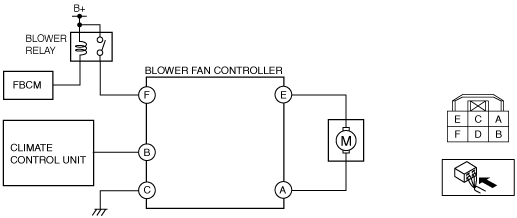

ac5uuw00003836

Terminal Voltage Table (Reference)

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

A
Motor operation (-)
Blower motor
Switch the ignition off
1.0 or less
•  Blower motor
•  Related wiring harness
Fan stopped (Switch the ignition ON (engine off or on))
B+
Fan: manual 1st
8.4
Fan: manual 3rd
5.1
Fan: manual 7th
1.0 or less
B
Blower fan speed control
Climate control unit
•  Related wiring harness
•  Climate control unit
C
GND
Body ground
Under any condition
1.0 or less
•  Related wiring harness
D
E
Motor operation (+)
Blower motor
Switch the ignition off
1.0 or less
•  Blower motor
•  Related wiring harness
Switch the ignition ON (engine off or on)
B+
F
B+
Blower relay
Switch the ignition off
1.0 or less
•  Related wiring harness
•  Blower relay
Switch the ignition ON (engine off or on)
B+


Blower Fan Speed Control Signal


Fan stopped

ac5jjw00007748
Blower fan controller terminal
•  B(+)—body ground(-)
Oscilloscope setting
•  5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
•   Switch the ignition ON (engine off or on)


Manual 1st

ac5jjw00007749
Blower fan controller terminal
•  B(+)—body ground(-)
Oscilloscope setting
•  5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
•  Switch the ignition ON (engine off or on)
•  Airflow mode: VENT
•  Air intake mode: RECIRCULATE


Manual 3rd

ac5jjw00007750
Blower fan controller terminal
•  B(+)—body ground(-)
Oscilloscope setting
•  5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
•  Switch the ignition ON (engine off or on)
•  Airflow mode: VENT
•  Air intake mode: RECIRCULATE


Manual 7th

ac5jjw00007751
Blower fan controller terminal
•  B(+)—body ground(-)
Oscilloscope setting
•  5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
•  Switch the ignition ON (engine off or on)
•  Airflow mode: VENT
•  Air intake mode: RECIRCULATE
