•  The crash zone sensor detects an impact during a frontal or frontal offset collision to the vehicle.

•  The crash zone sensor converts the detected impact to an electrical signal.

•  The crash sensor is built into the crash zone sensor.

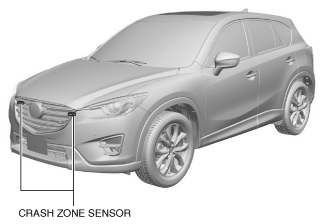

•  The crash zone sensor is installed to the shroud panel of the front bumper backside.

•  Two crash zone sensors are installed for independent impact detection on the left and right.

•  For the crash zone sensor operation, refer to the AIR BAG SYSTEM. (See AIR BAG SYSTEM.)

•  Function not equipped.
