ON-BOARD DIAGNOSTIC WIRING DIAGRAM [PARKING ASSIST UNIT (ULTRA SONIC)]

id0902r1200000

Parking sensor system

ac5wzn00003352

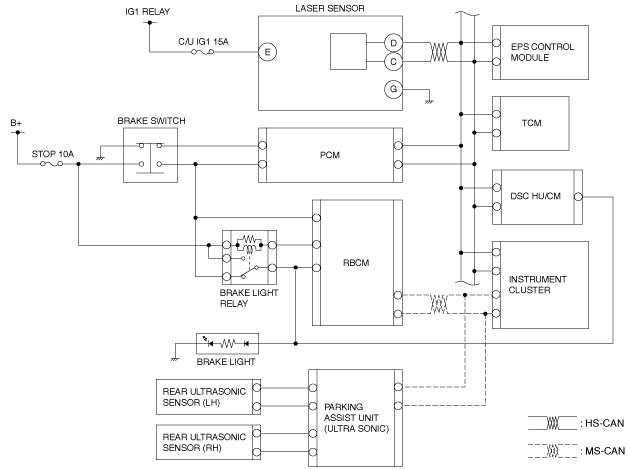

Smart city brake support [Reverse] (SCBS R) (Without Mazda Radar Cruise Control (MRCC) system)

ac5wzn00003340

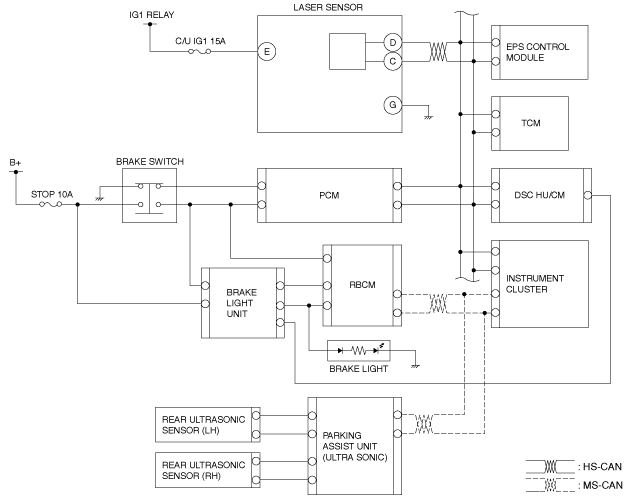

Smart city brake support [Reverse] (SCBS R) (With Mazda Radar Cruise Control (MRCC) system)

ac5wzn00003341
