SYSTEM WIRING DIAGRAM [ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY]]

SYSTEM WIRING DIAGRAM [ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY]]

id0903l8059900

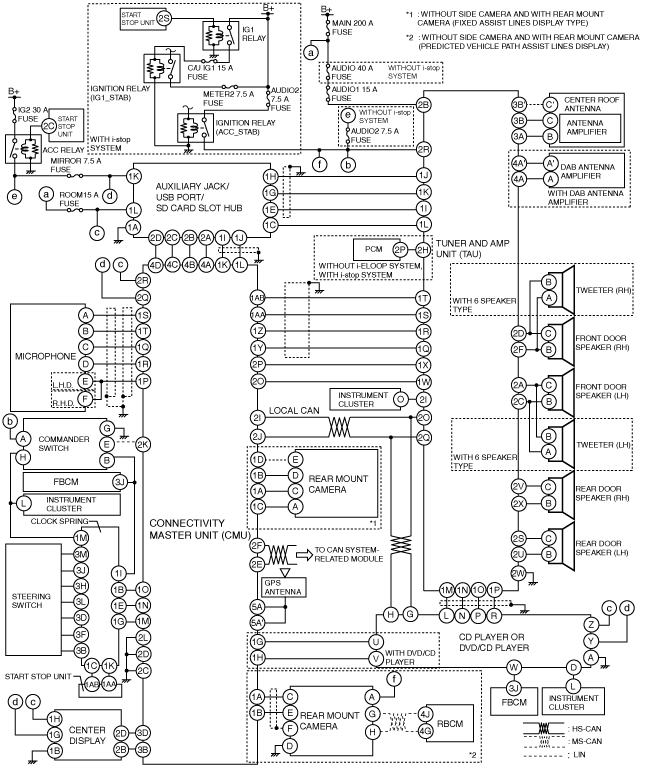

Without Bose^®

ac5wzn00003347

With Bose^®

ac5wzn00003348
