FRONT OVER FENDER REMOVAL/INSTALLATION

id091000878700

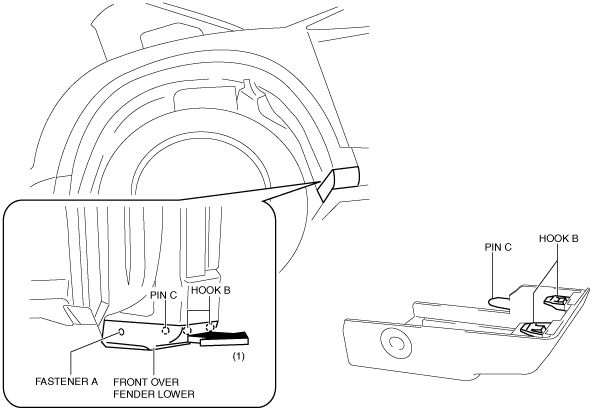

1.  Remove fastener A.

ac5jjw00000888

2.  Pull the front over fender lower in the direction of the arrow (1) while removing hook B and pin C.

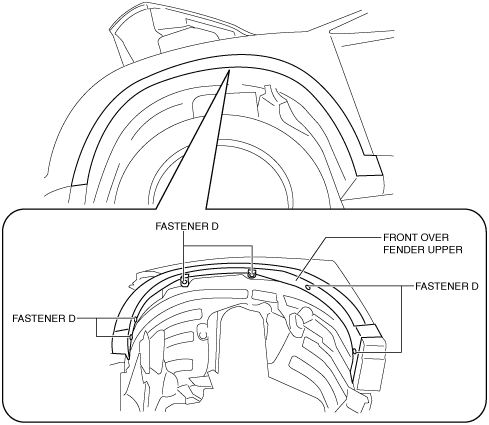

3.  Remove fasteners D.

ac5wzw00001173

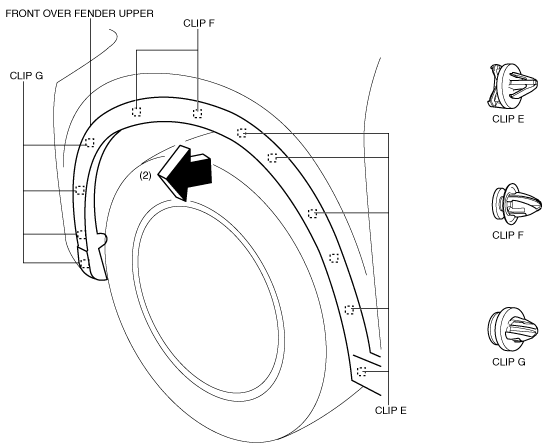

4.  Pull the front over fender upper in the direction of the arrow (2) while removing clips E, F and G.

ac5uuw00001820

5.  Install in the reverse order of removal.

Warning

•  When installing the front over fender, verify that clips E, F, G are not damaged, if they are damaged, replace them with new ones. Otherwise, the front over fender may fall off while the vehicle is being driven, leading to a serious accident.
