OUTER MIRROR GARNISH REMOVAL/INSTALLATION

id091200003000

Upper Outer Mirror Garnish

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

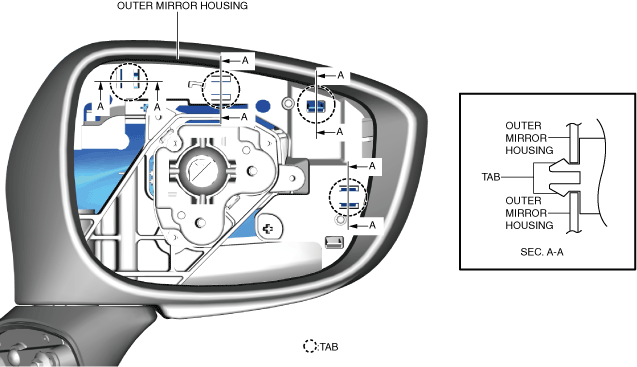

3.  Press the tabs of the outer mirror garnish shown in the figure using the remover tool and detach the tabs from the outer mirror housing.

ac5uuw00005102

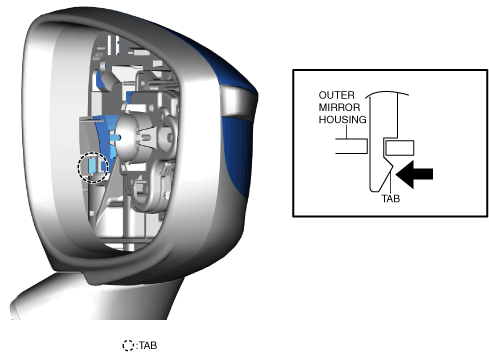

4.  Press the tab of the outer mirror garnish in the direction of the arrow shown in the figure using a tape-wrapped precision flathead screwdriver, and detach the tab from the outer mirror housing.

ac5uuw00005103

5.  Remove the upper outer mirror garnish.

6.  Install in the reverse order of removal.

Lower Outer Mirror Garnish

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3.  Remove the upper outer mirror garnish. (See Upper Outer Mirror Garnish.)

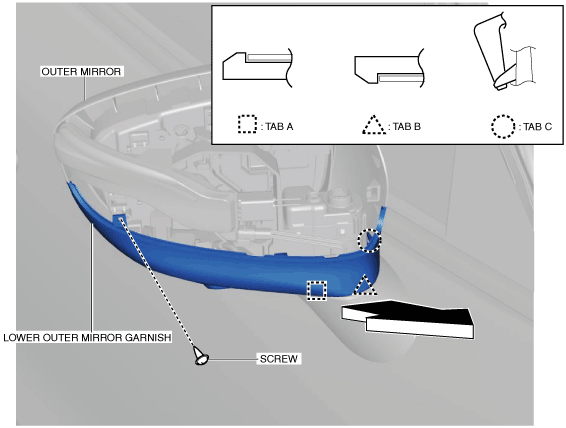

4.  Remove the screw.

ac5uuw00004012

5.  Using the tape-wrapped flathead screwdriver, detach tab A, B and C shown in the figure from the outer mirror.

6.  Install in the reverse order of removal.
