POWER OUTER MIRROR SWITCH INSPECTION

id091200003400


With Retract/return Function

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

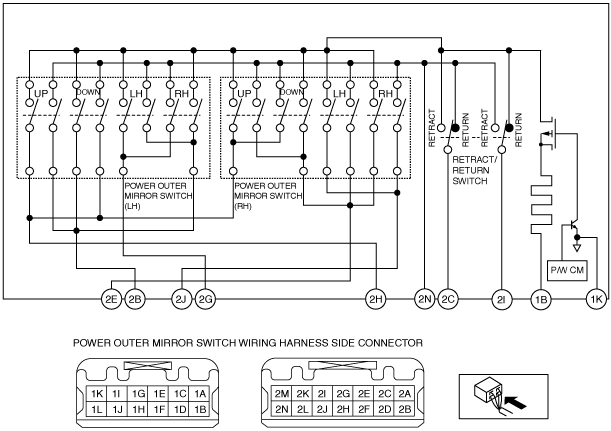

Auto-open/close function for all windows

ac5wzw00002543

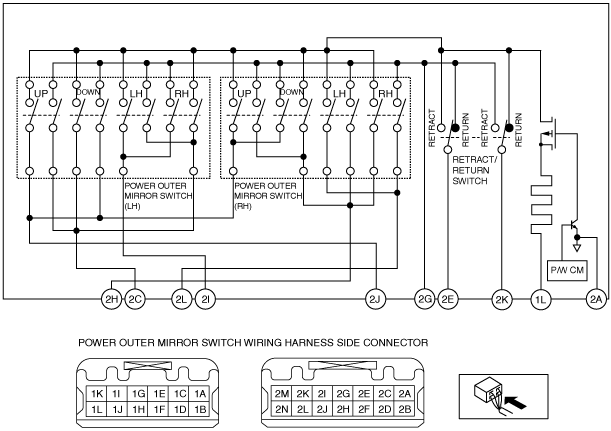

Auto-open/close function for driver-side

ac5wzw00004642

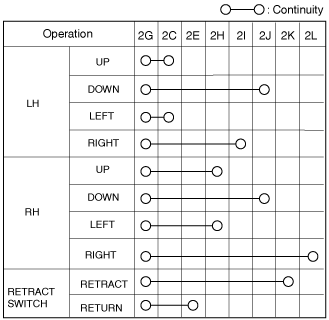

Auto-open/close function for all windows

ac5wzw00002544

Auto-open/close function for driver-side

ac5wzw00004643

4.  Connect the power outer mirror connector.

5.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

6.  Measure the voltage at each terminal.

•  If the voltage is not as specified in the terminal voltage table, inspect the parts under Inspection item (s) and related wiring harnesses.
―  If the system does not work normally even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.

Auto-open/close function for all windows

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)
2B
Right/down signal
Power outer mirror (LH)
While outer mirror glass (LH) is moving downward or towards right
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2C
Retract signal
Power outer mirror (LH/RH)
While power outer mirror (LH/RH) is retracting
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2E
Right/down signal
Power outer mirror (RH)
While outer mirror glass (RH) is moving downward or towards right
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2G
Left signal
Power outer mirror (LH)
While outer mirror glass (LH) is moving towards left
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2H
Up signal
Power outer mirror (LH/RH)
While outer mirror glass (LH/RH) is moving upward
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2I
Return signal
Power outer mirror (LH/RH)
While power outer mirror (LH/RH) is returning
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2J
Left signal
Power outer mirror (RH)
While outer mirror glass (RH) is moving towards left
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2N
GND
Body ground
Under any condition
1.0 or less
•  Related wiring harness

Auto-open/close function for driver-side

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)
2C
Right/down signal
Power outer mirror (LH)
While outer mirror glass (LH) is moving downward or towards right
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2E
Retract signal
Power outer mirror (LH/RH)
While power outer mirror (LH/RH) is retracting
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2G
GND
Body ground
Under any condition
1.0 or less
•  Related wiring harness
2H
Right/down signal
Power outer mirror (RH)
While outer mirror glass (RH) is moving downward or towards right
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2I
Left signal
Power outer mirror (LH)
While outer mirror glass (LH) is moving towards left
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2J
Up signal
Power outer mirror (LH/RH)
While outer mirror glass (LH/RH) is moving upward
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2K
Return signal
Power outer mirror (LH/RH)
While power outer mirror (LH/RH) is returning
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2L
Left signal
Power outer mirror (RH)
While outer mirror glass (RH) is moving towards left
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less


Without Retract/return Function

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

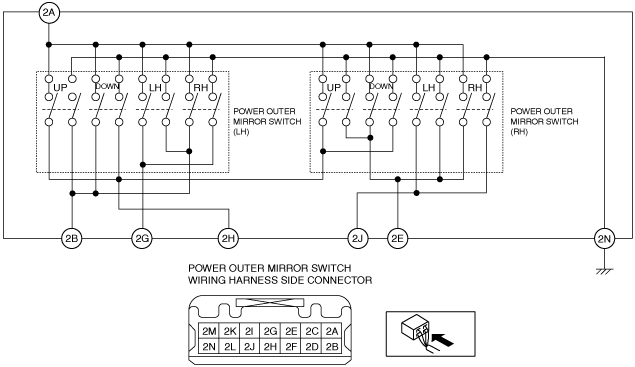

Auto-open/close function for all windows

ac5wzw00003756

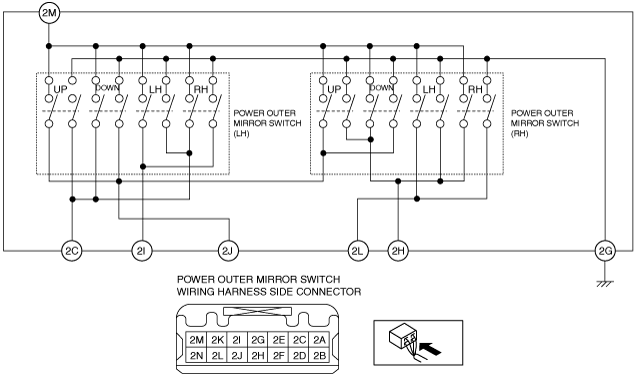

Auto-open/close function for driver-side

ac5wzw00003757

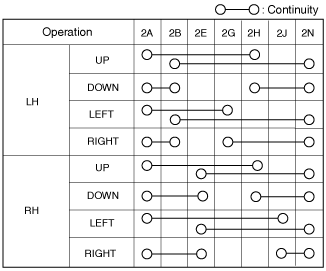

Auto-open/close function for all windows

ac5wzw00003759

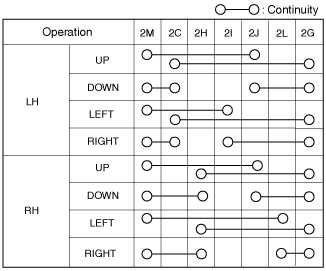

Auto-open/close function for driver-side

ac5wzw00003760
