POWER WINDOW SUBSWITCH

id091200010900

Purpose

• Transmits the power window subswitch operation of the driver to the power window control module.

Function

Manual

• When the power window subswitch is operated for manual open/close operation, it sends a manual open/close signal to the power window control module.

Auto (With auto-open/close function for all windows)

• When the power window subswitch is operated for auto open/close operation, it sends an auto open/close signal to the power window control module.

Construction

• The power window subswitch is located on the front passenger's side and rear side.

am6xun00002218

Operation

With auto-open/close function for driver-side window

• When the power window subswitch is operated for close operation, the close-side contact point is on.

am2zzn00001969

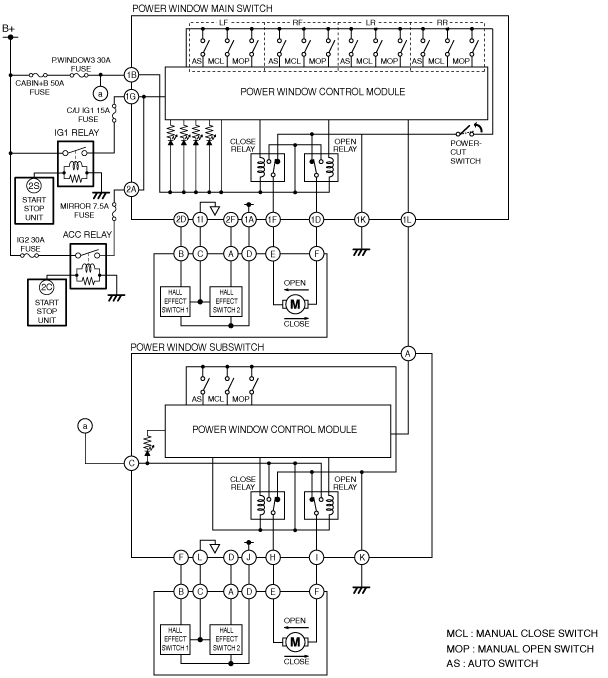

With auto-open/close function for all windows

• Contact points for door glass opening/closing can be changed by operating the power window main switch.

ac5wzn00003438

Fail-safe

• Not applicable
