GLASS/WINDOWS/MIRRORS
id091200012000
Outline
• A power window system has been adopted with which the door glass can be opened/closed electrically by operating the power window main switch or the power window sub switches.
• A power outer mirror system has been adopted with which the outer mirrors can be operated remotely using the power outer mirror switch.
• A rear window defogger has been adopted with which rear window glass fogging can be cleared by pressing the rear window defogger switch.
• Heated outer mirrors have been adopted which are can remove fogging on the surface of the outer mirrors in conjunction with the rear window defogger. (With heated outer mirrors)
• An auto-dimming mirror has been adopted which prevents the driver from being dazzled by light from vehicles at the rear for assured safety while driving at night. (With auto-dimming mirror)
Glass/window/mirror specification
|
|
UV protection glass
|
Dark glass
|
|
Windshield
|
—
|
—
|
|
Front door glass
|
×
|
—
|
|
Rear door glass
|
×*1
|
×*1
|
|
Rear door quarter glass
|
×*1
|
×*1
|
|
Quarter window glass
|
×*1
|
×*1
|
|
Rear window glass
|
×*1
|
×*1
|
*1 :Availability depends on vehicle specification.
Structural View

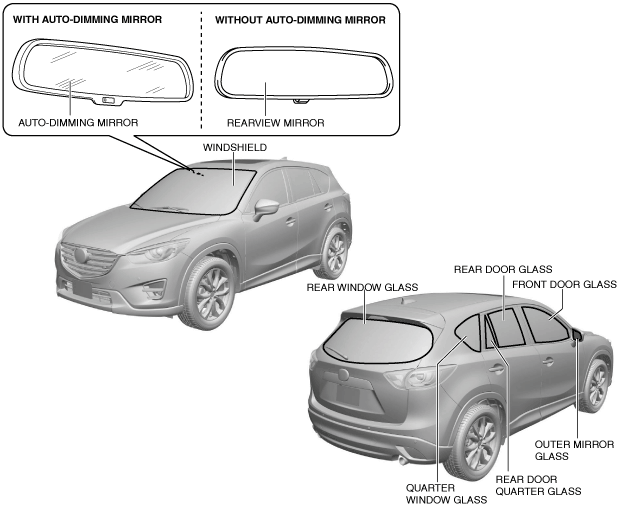

Glass/window/mirror

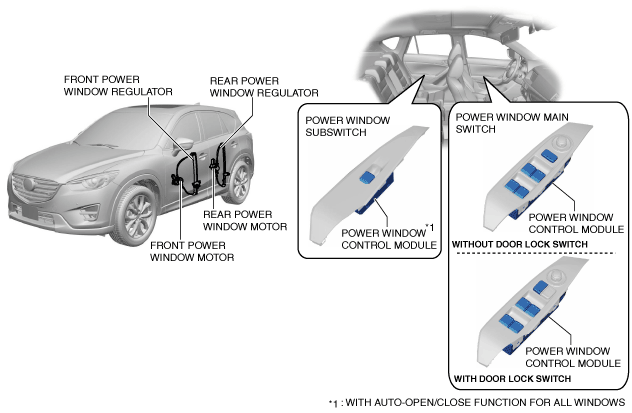

Power window system

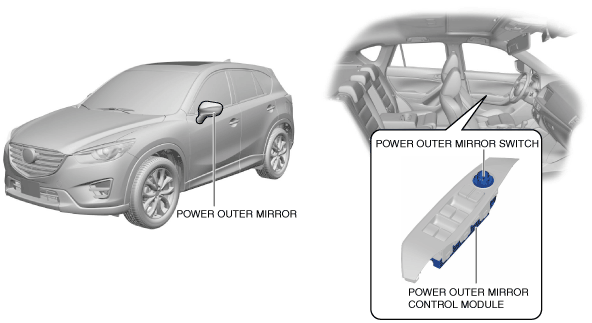

Power outer mirror system
Rear window defogger/heated outer mirror
