FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION

id091300911700

Warning
•  Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)
•  If the sliding mechanisms on both sides are not locked after assembling the front seat, the front seat will operate accidentally while the vehicle is driven, which could result in serious injury. After assembling the front seat, shake it up and down and verify that the sliding mechanism on the both sides are locked.
Caution
•  If the slide lever is operated after the front seat is removed, the left/right slide positions will deviate and the adjuster unit could be damaged after the front seat is installed. After removing a front seat, do not operate the slide lever.
ac5wzw00006994
•  Verify that there are no malfunctions in the forward/back slide of the seat and in the adjuster unit after installing a front seat.
•  When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

Removal

1.  Switch the ignition off (LOCK).

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Remove the headrest.

4.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5.  Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

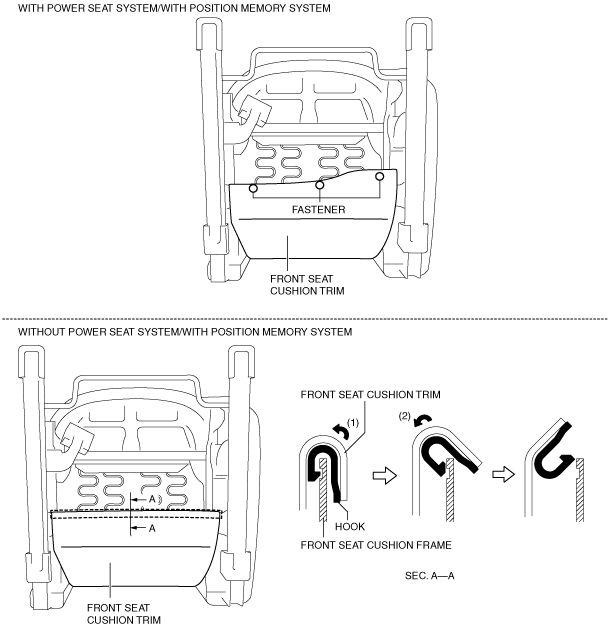

6.  Remove the fasteners and set the front seat cushion trim away from the front seat cushion frame. (With power seat system/with position memory system)

ac5wzw00008348

7.  Move the hook in the order of arrows (1) and (2) shown in the figure and set the front seat cushion trim away from the front seat cushion frame. (Without power seat system/without position memory system)

8.  Disconnect the connectors shown in the figure.

ac5wzw00007658

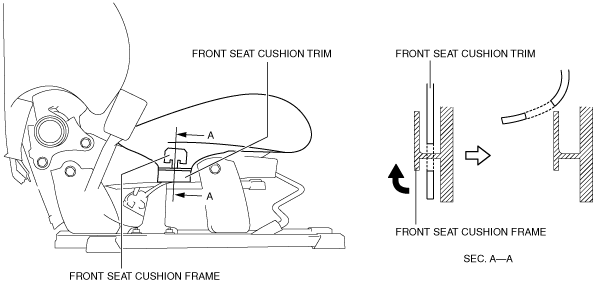

9.  Move the front seat cushion trim in the direction of the arrow shown in the figure and set the front seat cushion trim away from the front seat cushion frame.

ac5wzw00008349

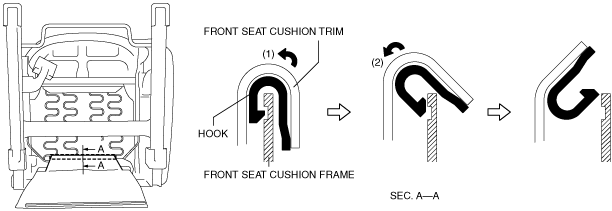

10.  Move the hook in the order of arrows (1) and (2) shown in the figure and set the front seat cushion trim away from the front seat cushion frame.

ac5wzw00006998

11.  Follow the procedure for each type and set the front seat cushion trim away from the front seat cushion frame.

Note

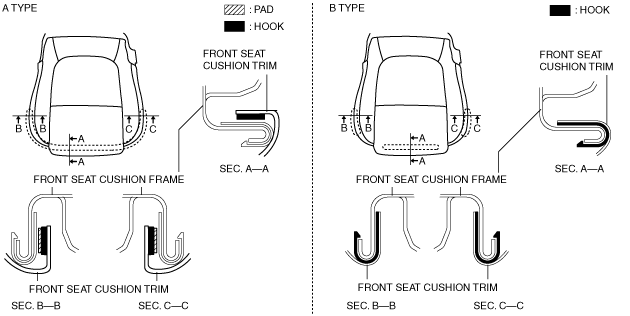

•  There are two types of hooks on the front side of the front seat cushion trim, A and B types. The hook removal procedure differs depending on the type.
ac5wzw00006999
A type
1.  Move the hook in the order of arrows (1) and (2) shown in the figure and set the front seat cushion trim away from the front seat cushion frame.
ac5wzw00007000

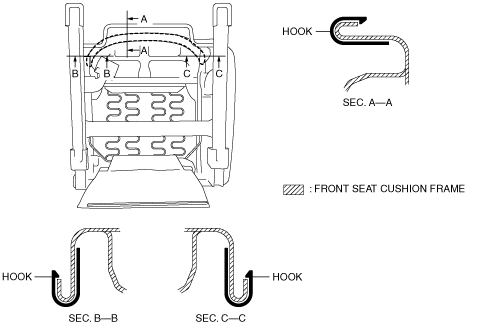

2.  Remove the hooks shown in the figure from the front seat cushion frame.
ac5wzw00008350
B type
•  Move the hook in the order of arrows (1) and (2) shown in the figure and set the front seat cushion trim away from the front seat cushion frame.
ac5wzw00007002

12.  Follow the procedure for each type and remove the front seat cushion trim from the front seat cushion pad.

Caution
•  If a C-ring is damaged while removing or installing the front seat cushion trim and front seat cushion pad, it may not be possible to install the front seat cushion trim and front seat cushion pad normally. When removing or installing the front seat cushion trim and front seat cushion pad, be careful not to damage the C-rings.
•  If a C-ring is damaged, replace it with a new one.
A type
•  Remove C-rings in the order of (1), (2), (3), (4), and (5) shown in the figure, and remove the front seat cushion trim from the front seat cushion pad.
ac5wzw00007092
B type
•  Remove C-rings in the order of (1), (2), (3), (4), and (5) shown in the figure, and remove the front seat cushion trim from the front seat cushion pad.
ac5wzw00007093
C type
•  Remove C-rings in the order of (1), (2), (3), and (4) shown in the figure, and remove the front seat cushion trim from the front seat cushion pad.
ac5wzw00008351


Installation

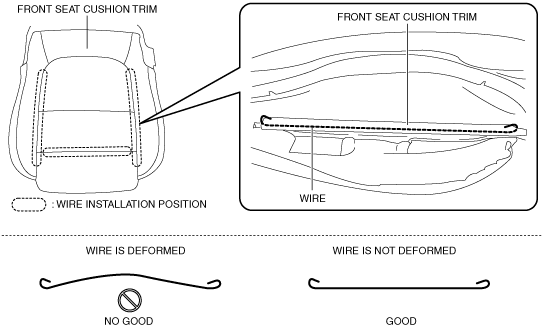

1.  Verify that the wires shown in the figure are not deformed and that they are installed to the front seat cushion trim. (With 8-way power seat system)

Caution
•  When installing the front seat cushion, be careful not to deform the wires. Otherwise, the outline of a wire may appear on the surface.
ac5wzw00007005
•  If a wire is deformed, remove it from the front seat cushion trim, repair the wire, and install it to the front seat cushion trim.

2.  Follow the procedure for each type and install the front seat cushion trim to the front seat cushion pad.

Caution
•  If a C-ring is damaged while removing or installing the front seat cushion trim and front seat cushion pad, it may not be possible to install the front seat cushion trim and front seat cushion pad normally. When removing or installing the front seat cushion trim and front seat cushion pad, be careful not to damage the C-rings.
•  If a C-ring is damaged, replace it with a new one.
Note
•  Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.
ac5wzw00007006
A type

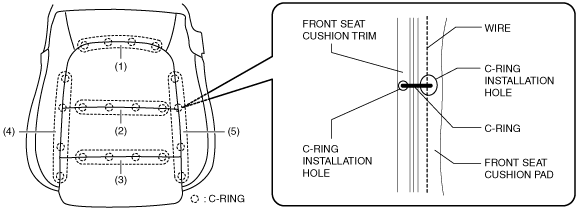

•  Align the front seat cushion trim with the installation hole of the front seat cushion pad, and install the C-rings in the order of (1), (2), (3), (4), and (5) shown in the figure.
ac5wzw00008352
B type

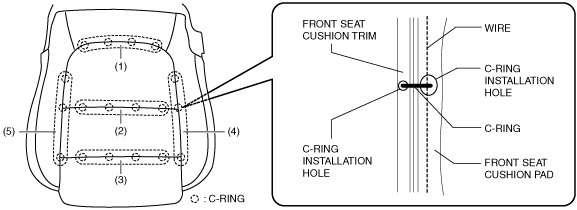

•  Align the front seat cushion trim with the installation hole of the front seat cushion pad, and install the C-rings in the order of (1), (2), (3), (4), and (5) shown in the figure.
Caution
•  When installing the C-rings, be careful not to deform the wires. When installing C-rings (1), and (2) shown in the figure, the wires can be easily deformed. (With 8-way power seat system)
ac5wzw00008353
C type

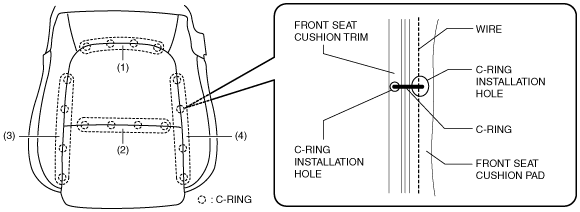

•  Align the front seat cushion trim with the installation hole of the front seat cushion pad, and install the C-rings in the order of (1), (2), (3), and (4) shown in the figure.
ac5wzw00008354

3.  Press the front seat cushion pad inward while pulling the front seat cushion trim outward.

ac5wzw00007009

4.  Follow the procedure for each type and install the front seat cushion trim to the front seat cushion frame.

Note
•  There are two types of hooks on the front side of the front seat cushion trim, A and B types. The hook installation procedure differs depending on the type.
ac5wzw00006999
A type
1.  Install the hooks to the positions shown in the figure.
ac5wzw00008350
2.  Move the hook in the order of arrows (1) and (2) shown in the figure and install the front seat cushion trim to the front seat cushion frame.
ac5wzw00007010
B type
1.  Move the hook in the order of arrows (1) and (2) shown in the figure and install the front seat cushion trim to the front seat cushion frame.
ac5wzw00007011

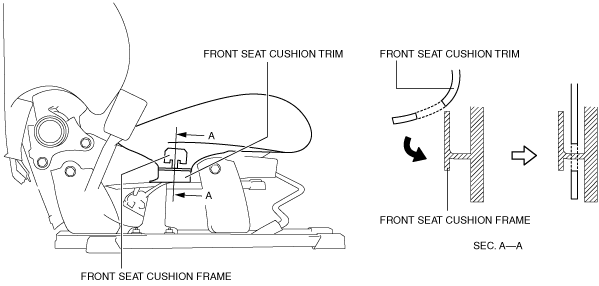

5.  Move the front seat cushion trim in the direction of the arrow shown in the figure and install the front seat cushion trim to the front seat cushion frame.

ac5wzw00008355

6.  Align the front seat cushion trim with the shape of the front seat cushion pad while pressing the front seat cushion pad outward.

ac5wzw00007013

7.  Pull the front seat cushion trim in the direction of the arrow shown in the figure and remove the wrinkles on the front seat cushion trim.

ac5wzw00007014

8.  Move the hook in the order of arrows (1) and (2) shown in the figure and install the front seat cushion trim to the front seat cushion frame

ac5wzw00007015

9.  Pull the front seat cushion trim in the direction of the arrow shown in the figure and remove the wrinkles on the front seat cushion trim.

ac5wzw00007016

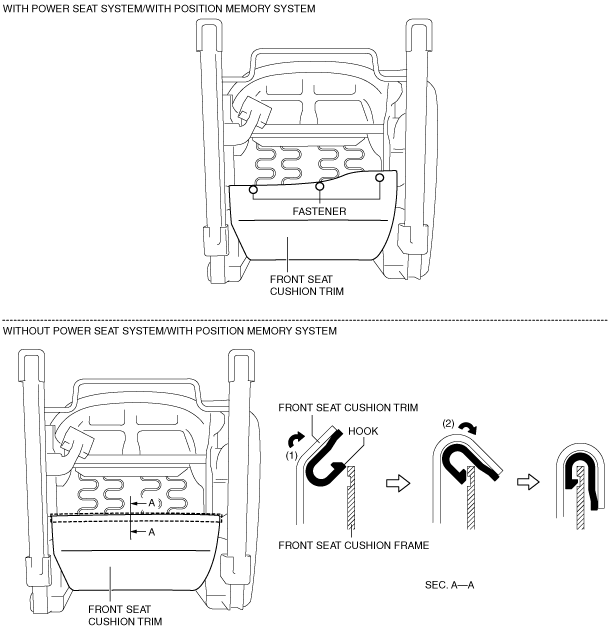

10.  Install the fasteners and install the front seat cushion trim to the front seat cushion frame. (With power seat system/with position memory system)

ac5wzw00007017

11.  Move the hook in the order of arrows (1) and (2) shown in the figure and install the front seat cushion trim to the front seat cushion frame. (Without power seat system/without position memory system)

12.  Connect the connectors shown in the figure.

ac5wzw00007658

13.  Install the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

14.  Install the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

15.  Install the headrest.

16.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
