FRONT SEAT BACK TRIM REMOVAL/INSTALLATION

id091300912000

Warning

• Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

• If the sliding mechanisms on both sides are not locked after assembling the front seat, the front seat will operate accidentally while the vehicle is driven, which could result in serious injury. After assembling the front seat, shake it up and down and verify that the sliding mechanism on the both sides are locked.

Caution

• If the slide lever is operated after the front seat is removed, the left/right slide positions will deviate and the adjuster unit could be damaged after the front seat is installed. After removing a front seat, do not operate the slide lever.

ac5wzw00007018

• Verify that there are no malfunctions in the forward/back slide of the seat and in the adjuster unit after installing a front seat.

• When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

Removal

1. Switch the ignition off (LOCK).

2. Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3. Remove the headrest.

4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

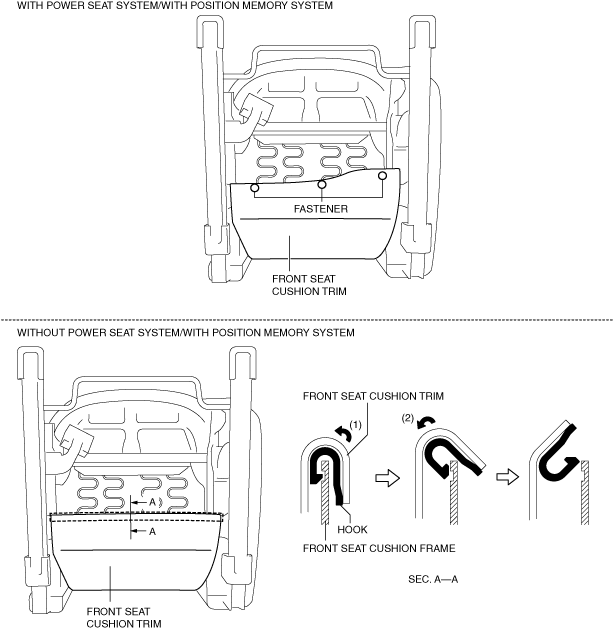

5. Remove the fasteners and set the front seat cushion trim away from the front seat cushion frame. (With power seat system/with position memory system)

ac5wzw00010554

6. Move the hook in the order of arrows (1) and (2) shown in the figure and set the front seat cushion trim away from the front seat cushion frame. (Without power seat system/without position memory system)

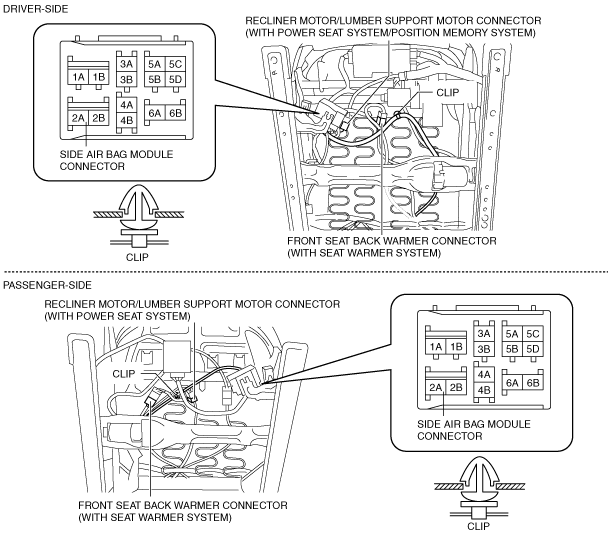

7. Disconnect the connectors shown in the figure.

ac5wzw00007063

8. Remove the clip.

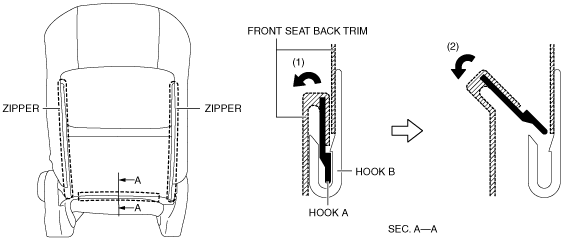

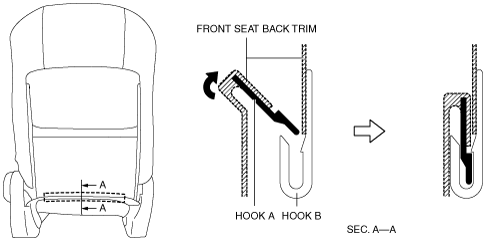

9. Move hook A in the order of arrows (1) and (2) shown in the figure and detach it from hook B.

ac5wzw00007064

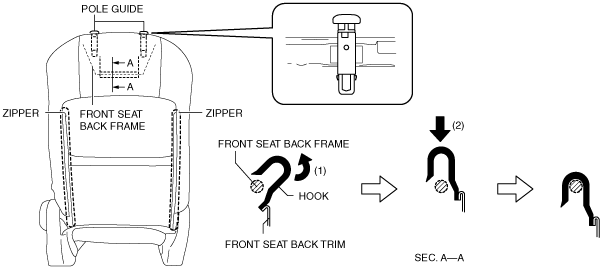

10. Unzip the zippers.

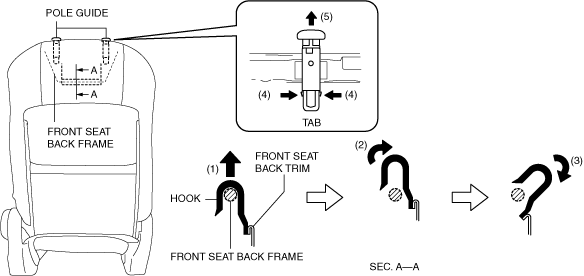

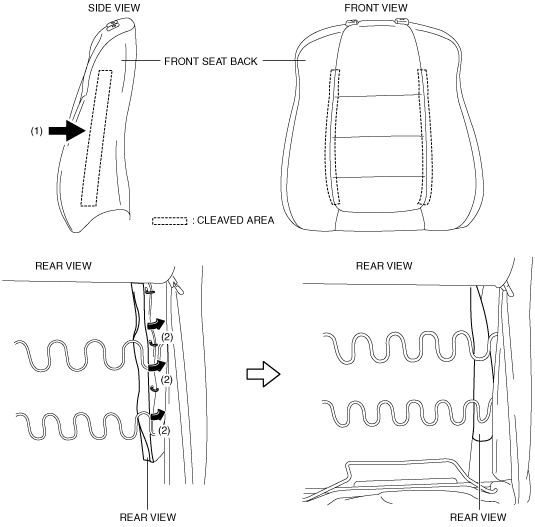

11. Move the hook in the order of arrows (1), (2), (3) shown in the figure and remove the front seat back trim from the front seat back frame.

ac5wzw00010555

12. While pressing the tabs in the direction of arrows (4) shown in the figure, pull the pole guides in the direction of arrow (5) and remove the pole guides from the front seat back frame.

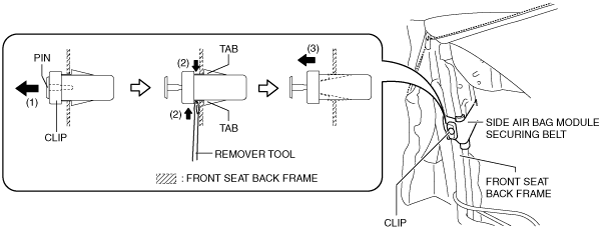

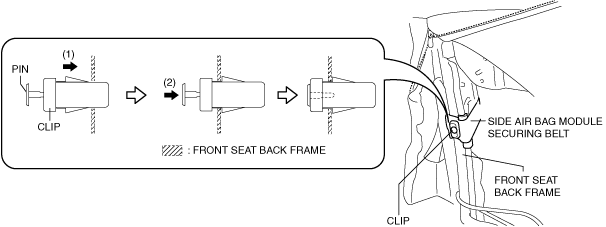

13. Pull out the pin in the direction of arrow (1) shown in the figure.

ac5wzw00007023

14. Move the remover tool in the direction of arrows (2) shown in the figure, pull the clip in the direction of arrow (3) with the tabs pressed, and remove the side air bag module securing belt from the front seat back frame.

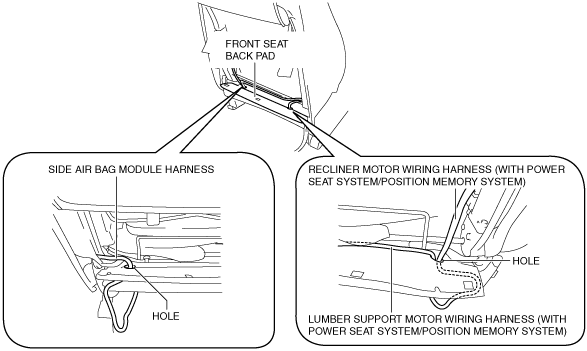

15. Pull the wiring harnesses shown in the figure out through the holes in the front seat back pad.

ac5wzw00007024

16. Pull out the front seat back pad, and the front seat back trim and front seat back warmer wiring harness (with seat warmer system) toward the front of the front seat.

am6zzw00012409

17. Lift up the front seat back trim and front seat back pad in the direction of the arrow as a single unit and remove it from the front seat back frame.

am6zzw00012410

18. Follow the procedure for each type and remove the front seat back trim from the front seat back pad.

Caution

• If a C-ring is damaged while removing or installing the front seat back trim and front seat back pad, it may not be possible to install the front seat back trim and front seat back pad normally. When removing or installing the front seat back trim and front seat back pad, be careful not to damage the C-rings.

• If a C-ring is damaged, replace it with a new one.

A type

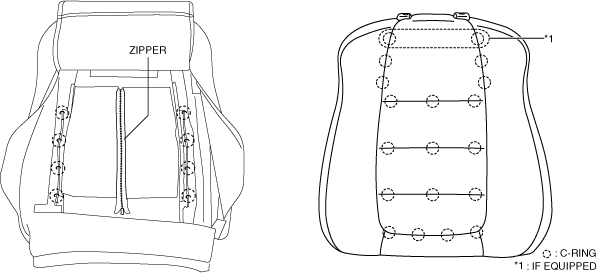

1. Unzip the zipper.

ac5wzw00009707

2. Remove C-rings shown in the figure, and remove the front seat back trim from the front seat back pad.

B type

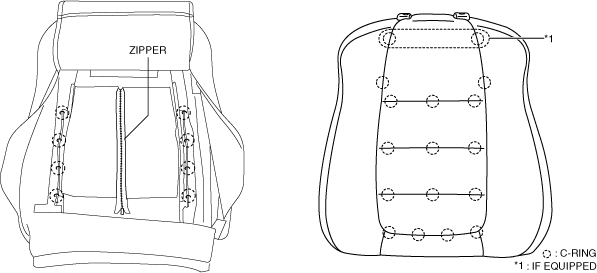

1. Unzip the zipper.

ac5wzw00009708

2. Remove C-rings shown in the figure, and remove the front seat back trim from the front seat back pad.

C type

1. Remove C-rings shown in the figure, and remove the front seat back trim from the front seat back pad.

ac5wzw00009709

D type

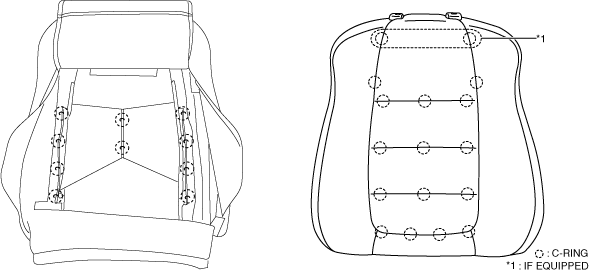

1. Remove C-rings shown in the figure, and remove the front seat back trim from the front seat back pad.

ac5wzw00009710

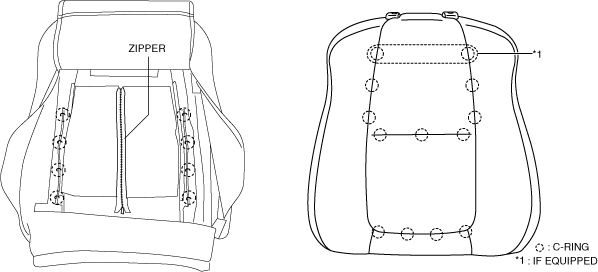

E type

1. Unzip the zipper.

ac5wzw00009711

2. Remove C-rings shown in the figure, and remove the front seat back trim from the front seat back pad.

F type

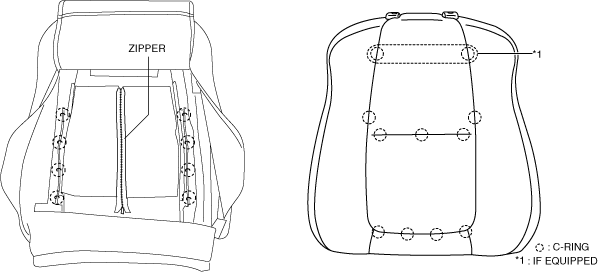

1. Unzip the zipper.

ac5wzw00009712

2. Remove C-rings shown in the figure, and remove the front seat back trim from the front seat back pad.

G type

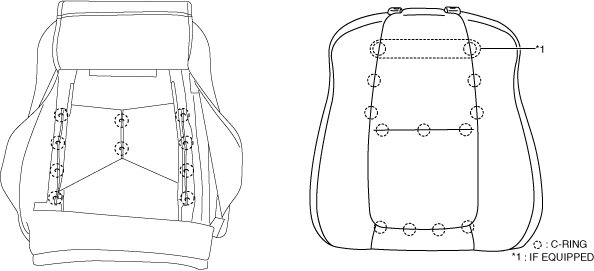

1. Remove C-rings shown in the figure, and remove the front seat back trim from the front seat back pad.

ac5wzw00009713

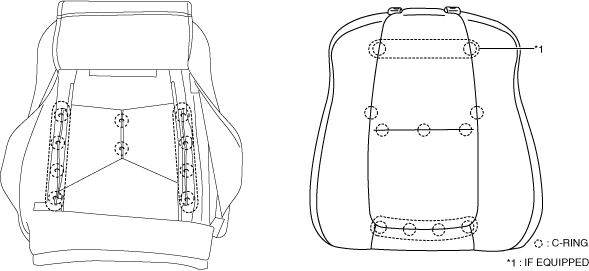

H type

1. Remove C-rings shown in the figure, and remove the front seat back trim from the front seat back pad.

ac5wzw00009714

Installation

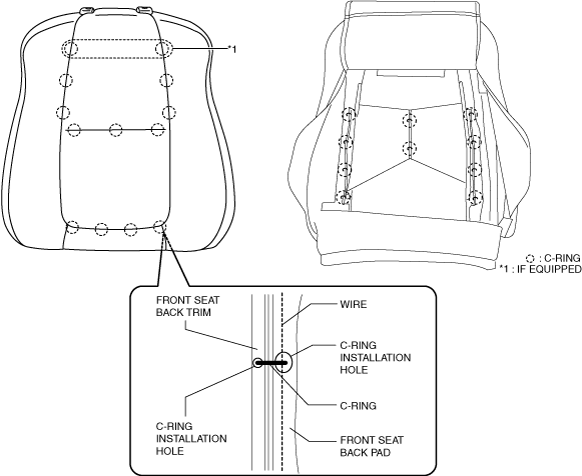

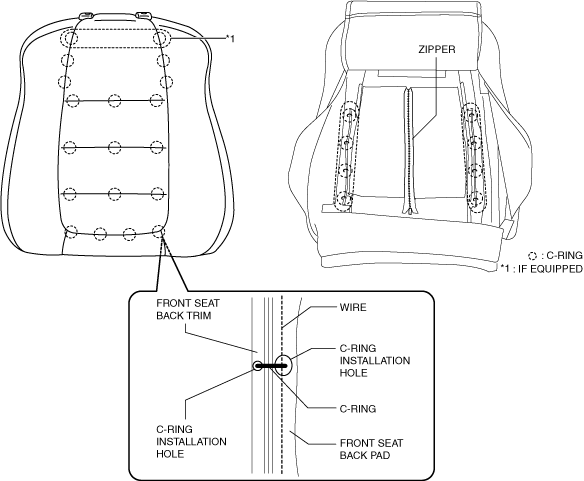

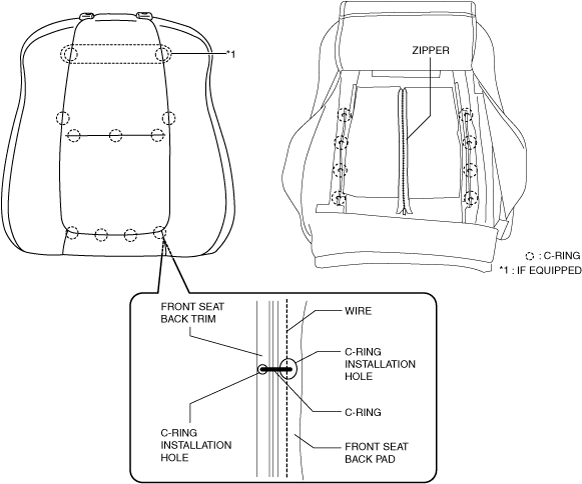

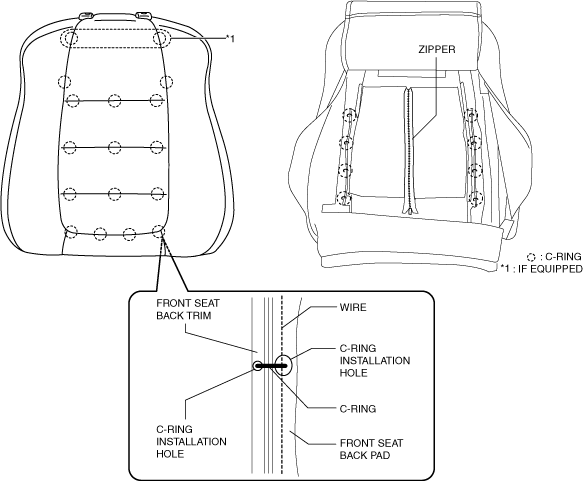

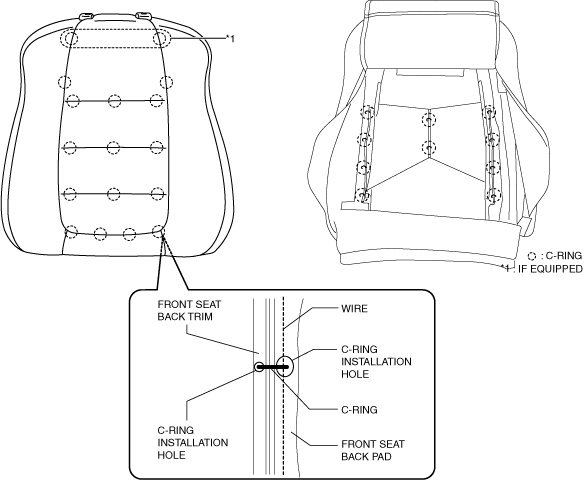

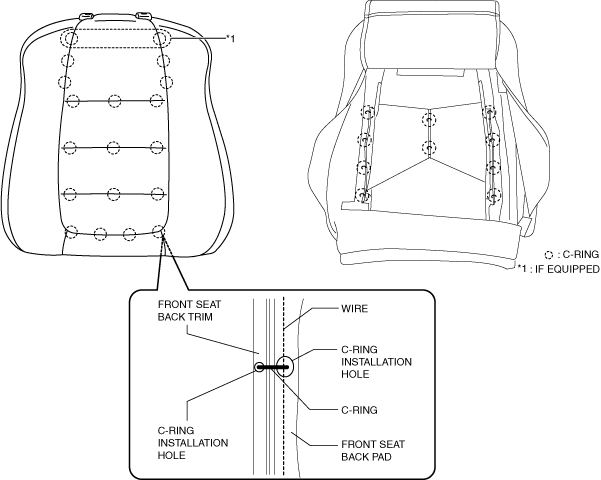

1. Follow the procedure for each type and install the front seat back trim to the front seat back pad.

Caution

• If a C-ring is damaged, replace it with a new one.

Note

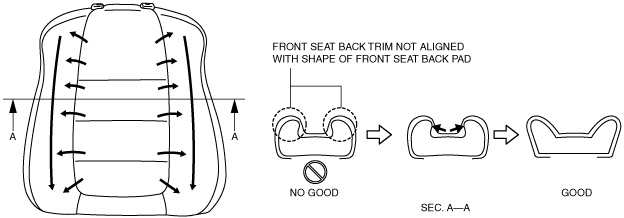

• Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.
