LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION

id091400516100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)

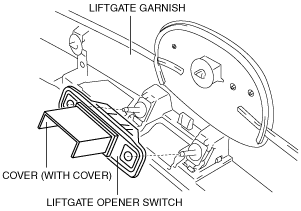

3.  Remove the liftgate opener switch from the liftgate garnish.

ac5wzw00007120

4.  Remove the cover in the direction of the arrow shown in the figure while detaching tabs. (With cover)

ac5wzw00007121

5.  Install in the reverse order of removal.
