RADIATOR GRILLE DISASSEMBLY/ASSEMBLY

id091600460100

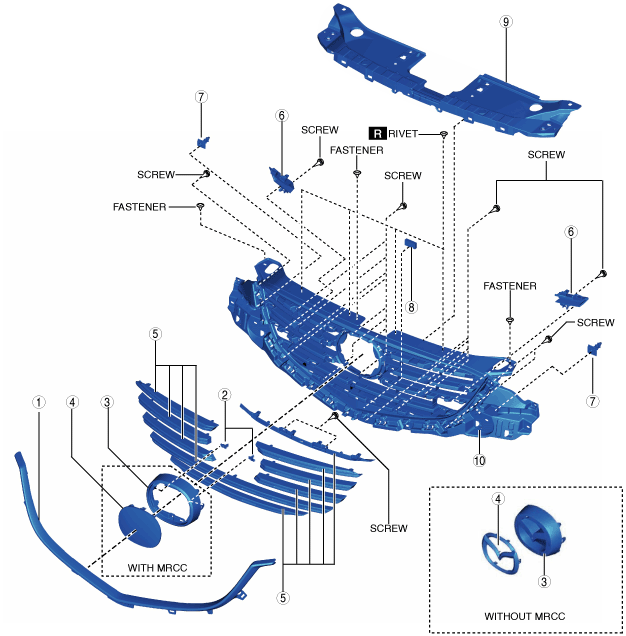

1.  Disassemble in the order indicated in the table.

ac5wzw00008375

1	Lower grille molding
2	Clip
3	Ornament base
4	Ornament
5	Grille garnish
6	Protector
7	Locator pin
8	Seal rubber
9	Grille bracket (See Rivet Removal Note)
10	Radiator grille reinforcement

2.  Assemble in the reverse order of disassembly.

Rivet Removal Note

Caution

•   If an inappropriate drill diameter is used, the front bumper face and the radiator grille may be damaged.

1.  When removing the rivet, perform the following procedure:

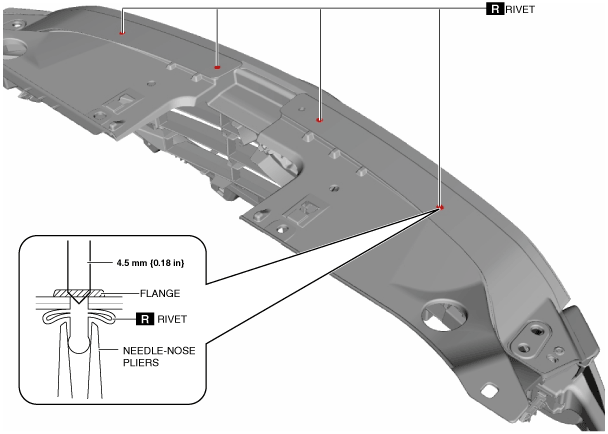

(1)  Secure the rivet pin from the radiator grille reinforcement side using needle-nose pliers.

ac5wzw00008376

(2)  Use the following drill diameter.

Drill diameter:

4.5 mm {0.18 in}

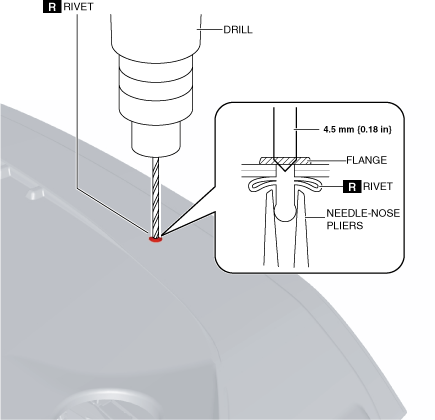

2.  Remove the rivet flange using a drill and remove the rivet.

ac5wzw00012750

3.  Remove any rivet shavings from the front bumper face and the radiator grille.
