RADIATOR GRILLE REMOVAL/INSTALLATION

id091600468000

1.  Disconnect the negative battery cable.(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2])(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5])(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)])

2.  Remove the seal board upper.(See SEAL BOARD UPPER REMOVAL/INSTALLATION)

3.  Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION)

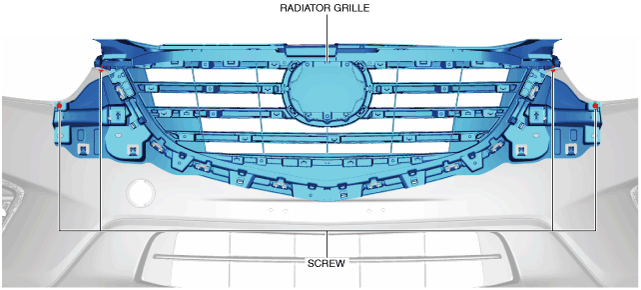

4.  Remove the screws.

ac5uuw00003752

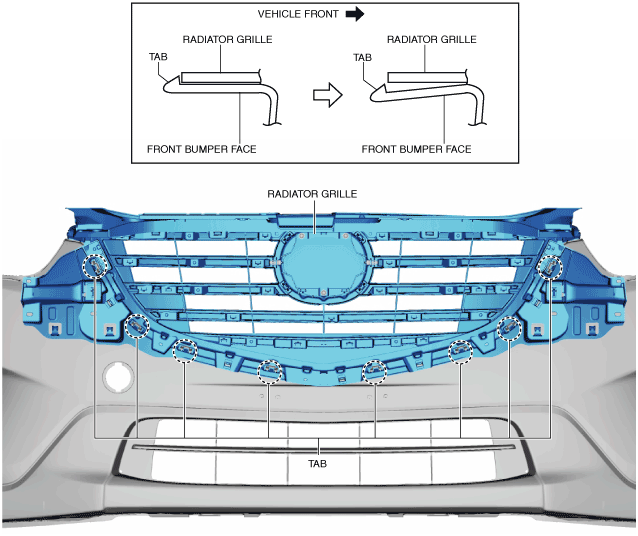

5.  Detach the tabs of the front bumper face from the radiator grille.

ac5uuw00003753

6.  Remove the radiator grille.

7.  Install in the reverse order of removal.
