COWL GRILLE REMOVAL/INSTALLATION

id091600801000

1.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

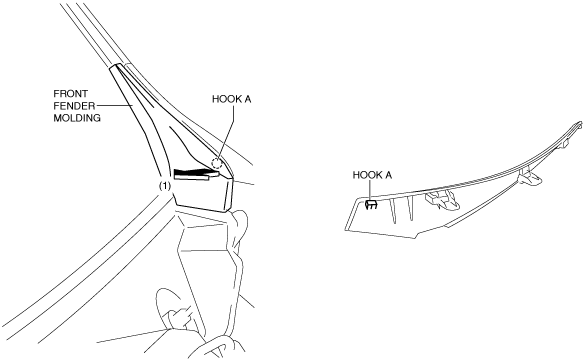

2.  Pull the front fender molding in the direction of the arrow (1) while detaching hook A.

ac5wzw00002894

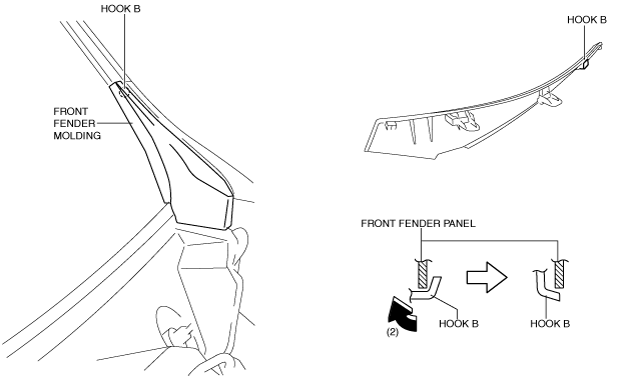

3.  Pull the front fender molding in the direction of the arrow (2) while detaching hook B.

ac5wzw00002895

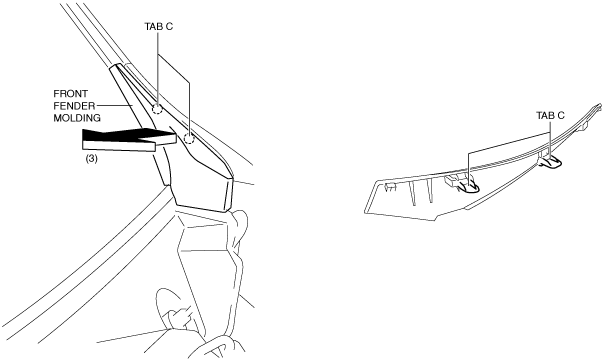

4.  Pull the front fender molding in the direction of the arrow (3) and remove it while detaching tab C.

ac5wzw00002896

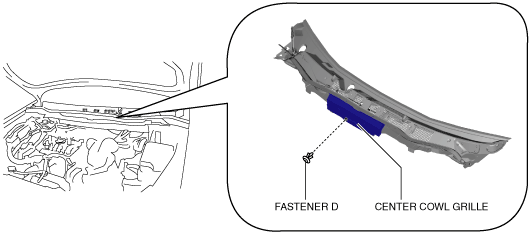

5.  Remove the fastener D. (SKYACTIV-D 2.2)

ac5wzw00006736

6.  Remove the center cowl grille. (SKYACTIV-D 2.2)

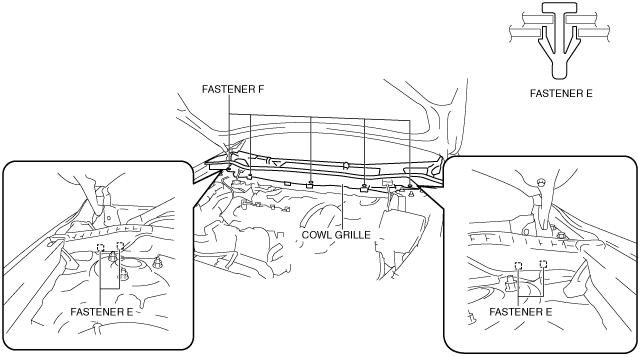

7.  Remove fasteners E shown in the figure.

ac5wzw00006737

8.  Remove fasteners F shown in the figure.

9.  Disconnect the join pipe A of the windshield washer hose. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)

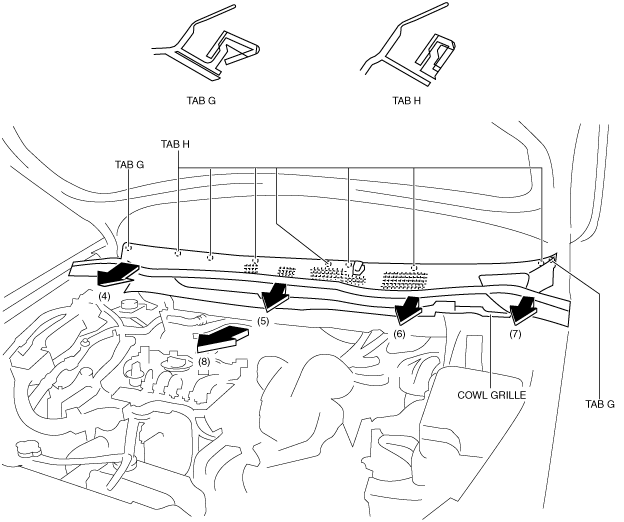

10.  Pull the cowl grille in the direction of the arrow in the order of (4), (5), (6), (7), (8) and remove it while detaching tabs G, tabs H.

ac5wzw00006738

11.  Install in the reverse order of removal.
