SIDE STEP MOLDING REMOVAL/INSTALLATION

id091600801800

1.  Set the rear over fender aside. (See REAR OVER FENDER REMOVAL/INSTALLATION.)

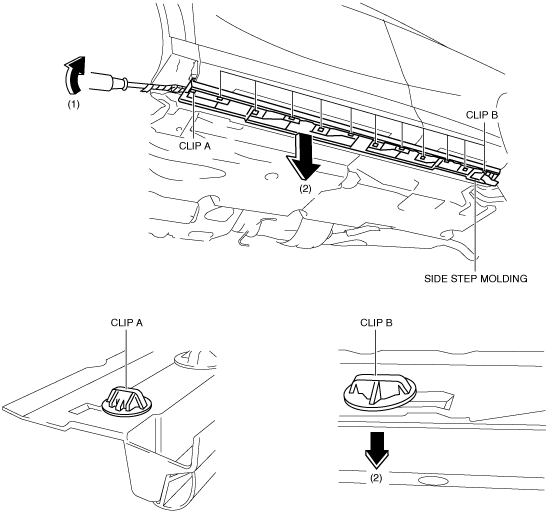

2.  Insert a tape-wrapped flathead screwdriver shown in the figure and remove the clip A in the direction of arrow (1).

ac5wzw00003104

3.  Pull the side step molding in the direction of the arrow (2) shown in the figure and remove clips B from side step molding.

4.  After removing the side step molding, remove clip A, clips B from the body using a fastener remover.

5.  Install clip A, clips B to the side step molding.

6.  Install in the reverse order of removal.
