FRONT UNDER COVER No.2 REMOVAL/INSTALLATION

id091600888900

1.  Lift up the vehicle.

2.  Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

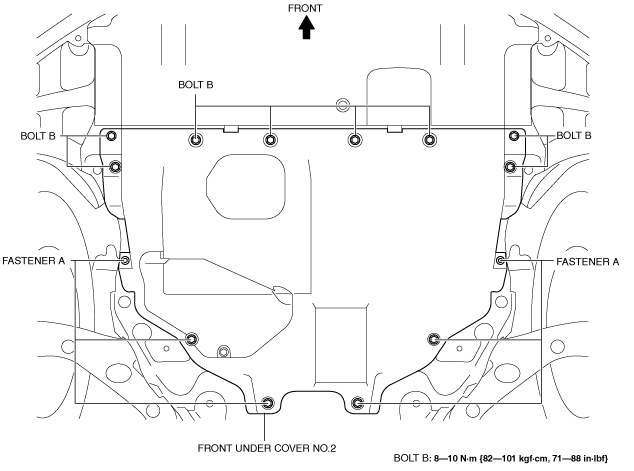

3.  Remove fasteners A.

ac5wzw00003030

4.  Remove bolts B.

5.  Remove the front under cover No.2.

6.  Install in the reverse order of removal.
