CENTER UNDER COVER REMOVAL/INSTALLATION


id091600900200

1.  Lift up the vehicle.

2.  Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove bolts.

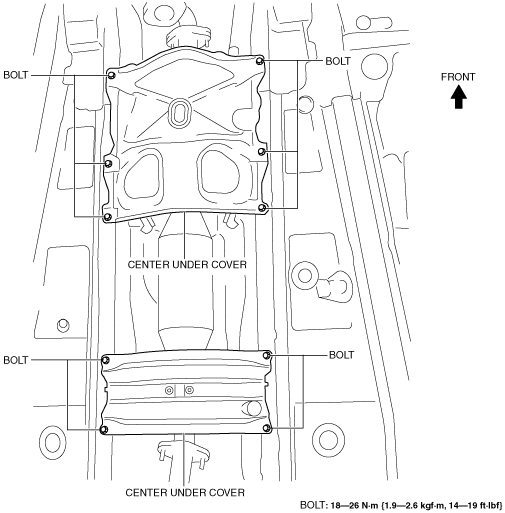

2WD

ac5wzw00008379

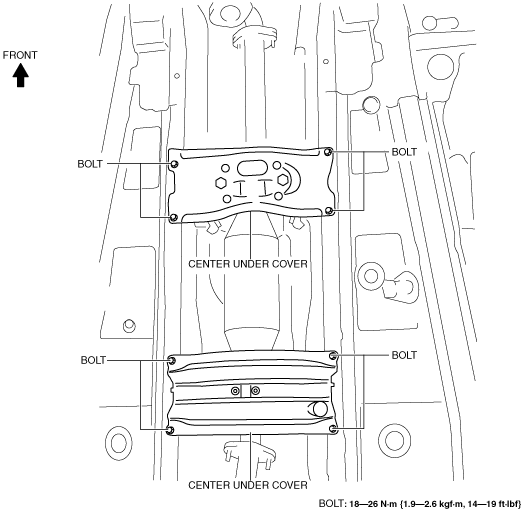

4WD

ac5wzw00008380

4.  Remove the center under cover.

5.  Install in the reverse order of removal.
